HP EliteDesk 705 G3 - Page 3

E
L-MF877-00 Page 3
Template Revision B
PSG instructions for this template are available at EL-MF877-01

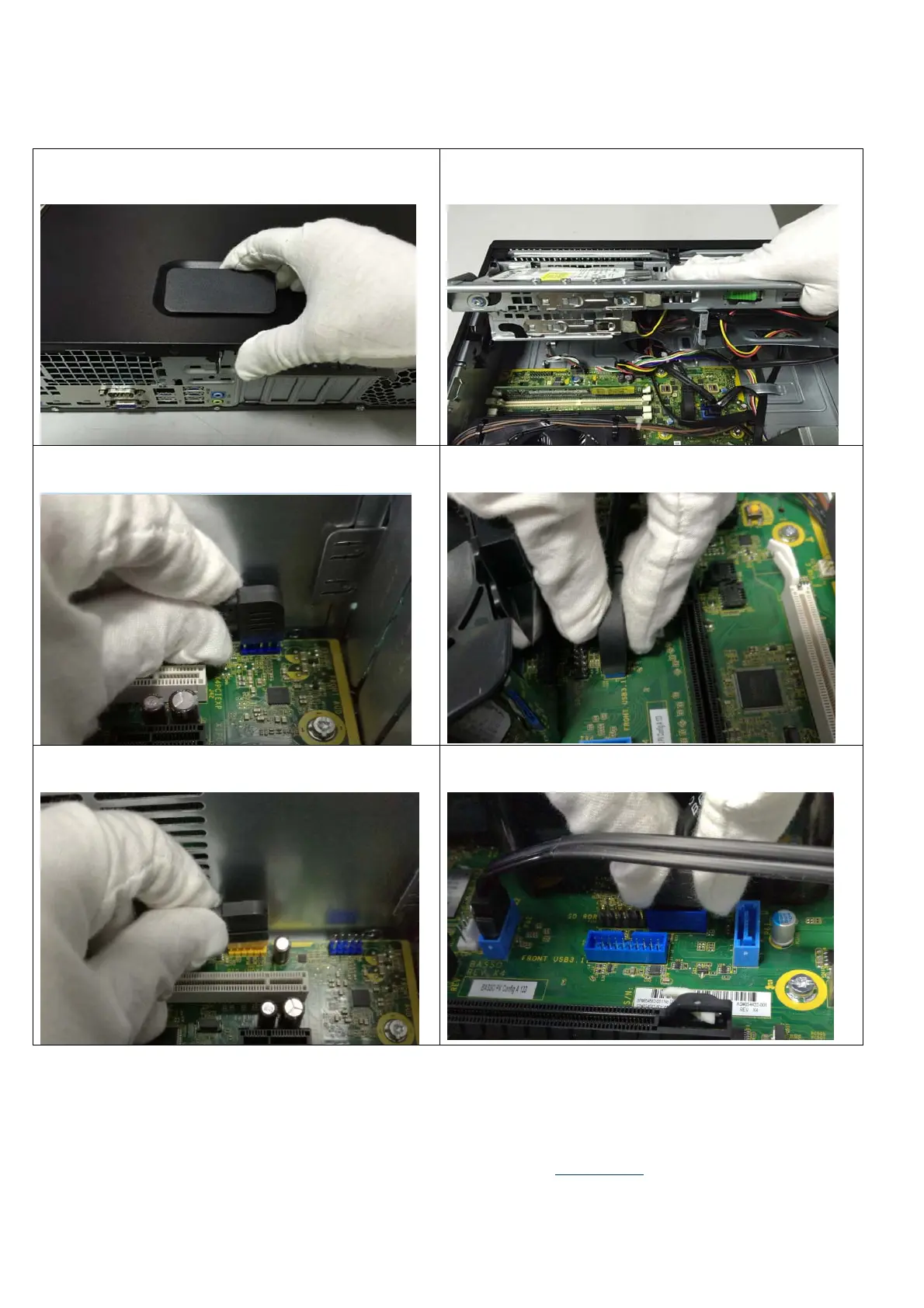

Figure1pullthehandleandremoveaccesspanel Figure2Rotatethedrivercagefromthehook
Figure 3 Disconnect FIO Audio cables from MB Figure 4 Disconnect FIO USB3.0 cables from MB
Figure 5 Disconnect FIO USB2.0 cables from MB Figure 6 Disconnect SATA cables from the MB
