HP EliteDesk 705 G4 Disassembly Instructions

EL-MF877-00
Template Revision B
Page 3
PSG instructions for this template are available at EL-MF877-01
1

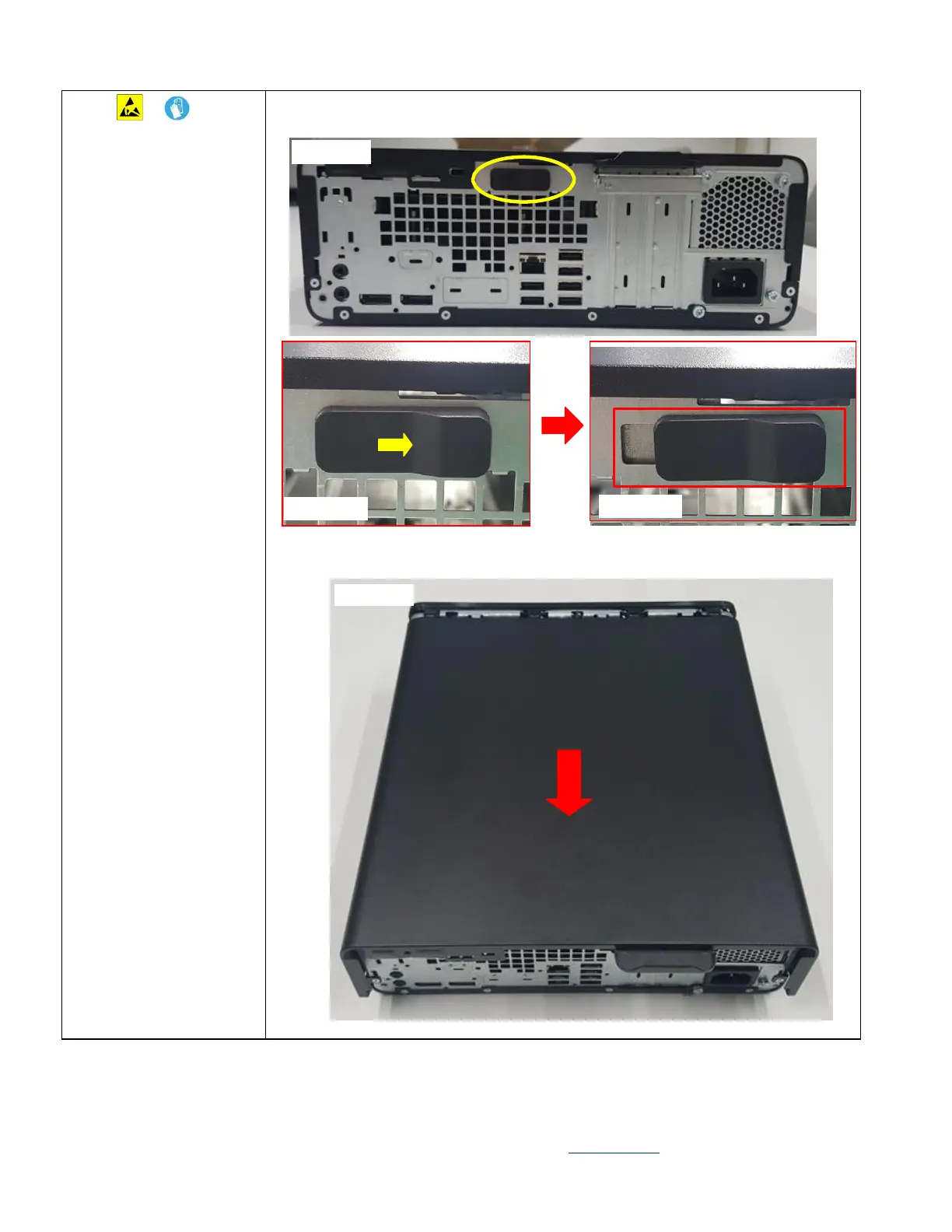

Push thumb latch on
the chassis rear side.
Push side panel in
the end as shown,
and then pick up from
chassis as shown.
See photo 1, 2, 3, 4
Photo 1
Photo 4
Front
Push
Rear
Thumb latch will lock
on this location
Photo 3
Push
Photo 2

HP EliteDesk 705 G4 Specifications

General

Graphics	Integrated AMD Radeon Vega Graphics
Networking	Integrated Realtek RTL8111HSH-CG GbE
Processor Options	AMD Ryzen PRO
Memory	Up to 64 GB DDR4
Storage Options	2.5-inch HDD/SSD, M.2 SSD
Ports	RJ-45
Operating System	Windows 10 Pro
Form Factor	Small Form Factor
Audio	Conexant CX20632 codec, 2W internal speaker
Expansion Slots	PCIe x16, PCIe x1, M.2
Power Supply	180 W internal power supply, active PFC
