HP EliteDisplay S230tm User Manual

Connecting the cables

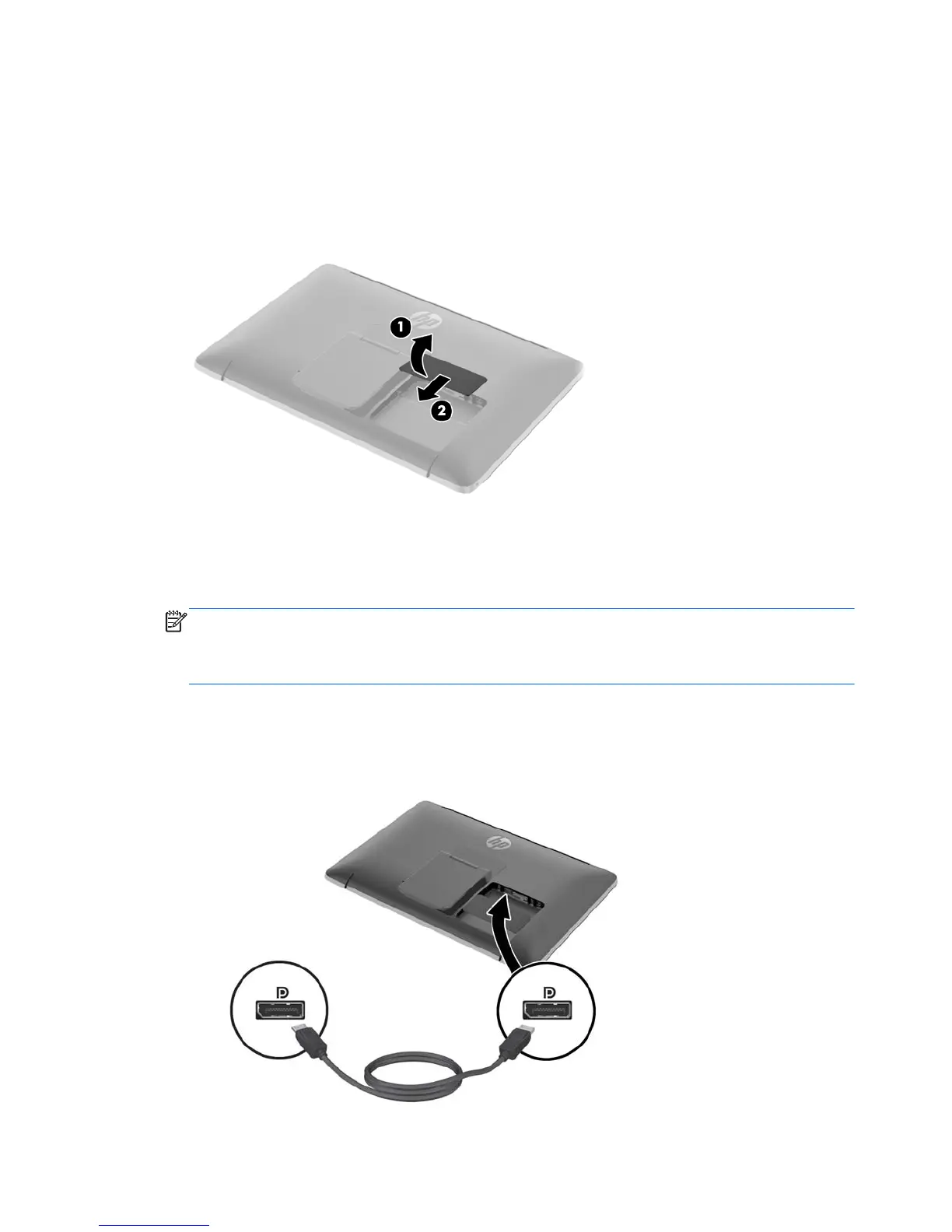

1. Lay the monitor panel face down on a flat surface covered by a clean, dry cloth.
2. Rotate the bottom of the cable cover up (1) then slide out the top of the cover (2) to remove it.
3. Depending on your configuration, connect either the DVI or DisplayPort video cable between the
PC and the monitor.
NOTE: The video mode is determined by the video cable used. The monitor will automatically
determine which inputs have valid video signals. The inputs can be selected by pressing the
Input button on the side panel or through the On-Screen Display (OSD) feature by pressing the
Menu button.
●
For DisplayPort digital operation, connect the DisplayPort signal cable to the DisplayPort
connector on the rear of the monitor and the other end to the DisplayPort connector on your
input device (cable provided).
4 Chapter 2 Setting up and using the monitor

HP EliteDisplay S230tm Specifications

General

Pixel pitch	0.265 x 0.265 mm
Aspect ratio	16:9
Screen shape	Flat
Display diagonal	23 \
Touch technology	Multi-touch
Touchscreen type	Tabletop
Display brightness	220 cd/m²
Vertical scan range	50 - 76 Hz
Horizontal scan range	24 - 94 kHz
Touchscreen technology	Optical imaging
Contrast ratio (typical)	1000:1
Display diagonal (metric)	58.42 cm
Product color	Black, Silver
Country of origin	China
Dimensions (W x D x H) with stand	599.3 x 69.5 x 409.2 mm
DVI-D ports quantity	1
Tilt angle range	15 - 70 °
Panel mounting interface	100 x 100 mm
Power consumption (standby)	0.5 W
Power consumption (typical)	25 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
OmniTapps Multitouch compatibility	No
RMS rated power	2 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	69.5 mm
Width (with stand)	599.3 mm
Height (with stand)	409.2 mm
Weight (with stand)	6500 g
Depth (without stand)	40.5 mm
Weight (without stand)	5500 g
