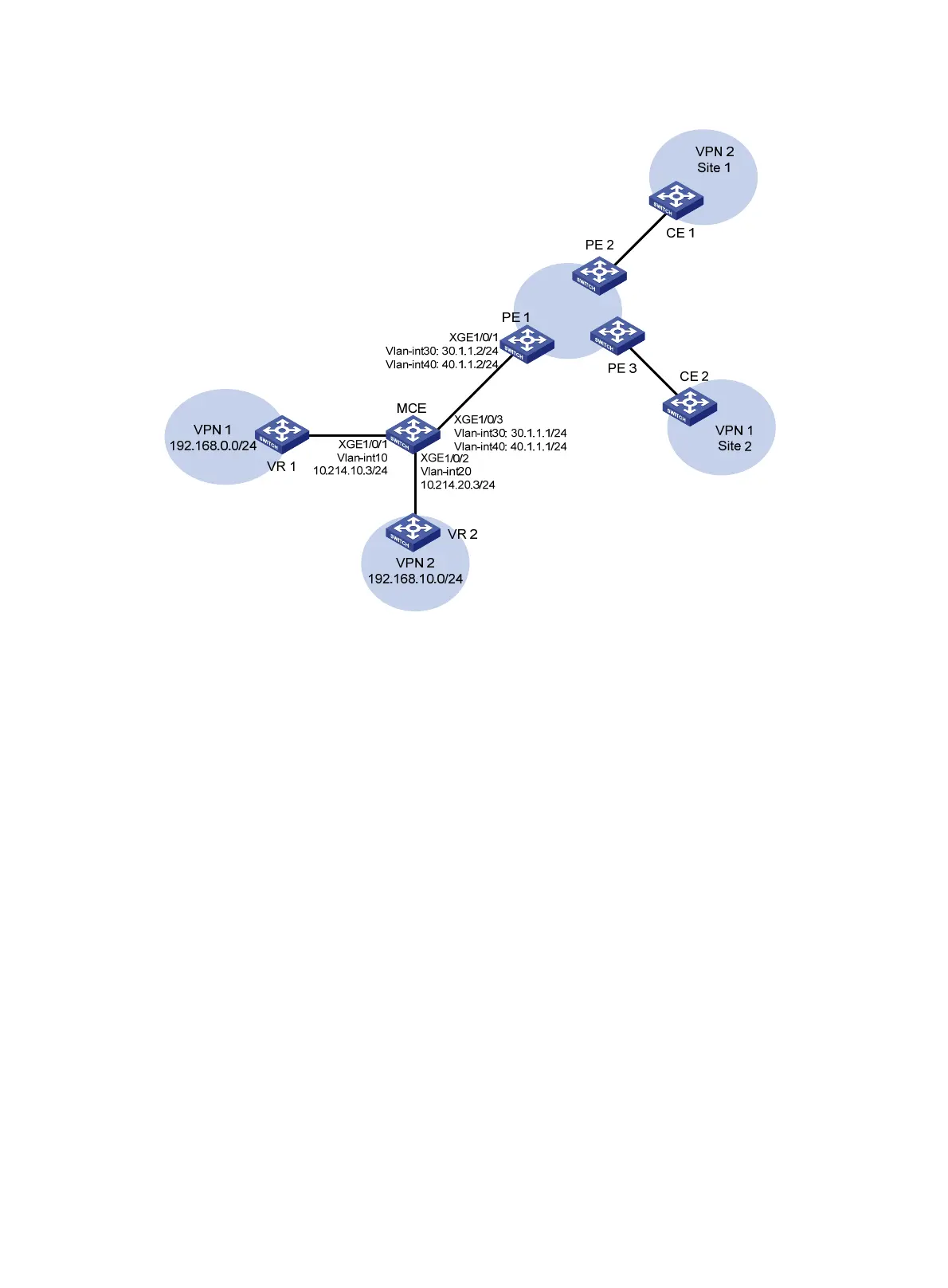

Figure 4 Network diagram

Configuration procedure

Assume that the system name of the MCE device is MCE, the system names of the edge devices of

VPN 1 and VPN 2 are VR1 and VR2, respectively, and the system name of PE 1 is PE1.

1. Configure the VPN instances on the MCE and PE 1:

# On the MCE, configure VPN instances vpn1 and vpn2, and specify an RD and route targets

for each VPN instance.

<MCE> system-view

[MCE] ip vpn-instance vpn1

[MCE-vpn-instance-vpn1] route-distinguisher 10:1

[MCE-vpn-instance-vpn1] vpn-target 10:1

[MCE-vpn-instance-vpn1] quit

[MCE] ip vpn-instance vpn2

[MCE-vpn-instance-vpn2] route-distinguisher 20:1

[MCE-vpn-instance-vpn2] vpn-target 20:1

[MCE-vpn-instance-vpn2] quit

# Create VLAN 10, add port Ten-GigabitEthernet 1/0/1 to VLAN 10.

[MCE] vlan 10

[MCE-vlan10] port ten-gigabitethernet 1/0/1

[MCE-vlan10] quit

# Create VLAN-interface 10, and bind VLAN-interface 10 to VPN instance vpn1.

[MCE] interface vlan-interface 10

[MCE-Vlan-interface10] ip binding vpn-instance vpn1

# Configure an IP address for VLAN-interface 10.

[MCE-Vlan-interface10] ip address 10.214.10.3 24
