63
MSR3024 PoE

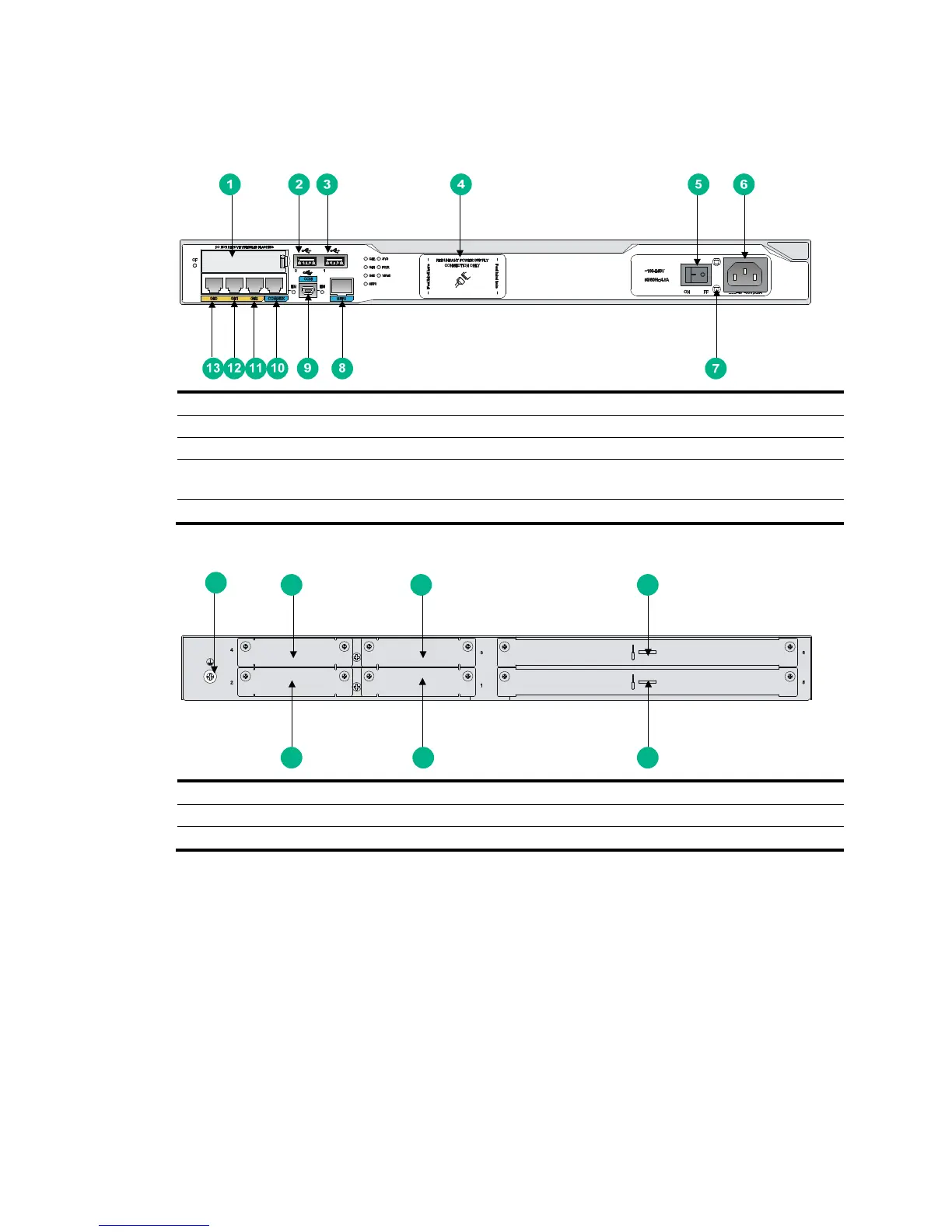

Figure 88 MSR3024 PoE front view
(1) CF card cover (2) USB port 0 (3) USB port 1
(4) RPS receptacle cover (5) Power switch (6) AC-input power receptacle
(7) Power cord bail latch (8) SFP port (SFP0) (9) USB console port (CON)
(10) Console port/AUX port
(CON/AUX)
(11) Gigabit Ethernet port (GE2) (12) Gigabit Ethernet port (GE1)
(13) Gigabit Ethernet port (GE0)
Figure 89 MSR3024 PoE rear view
(1) Grounding terminal (2)SIC slot (slot 4) (3) SIC slot (slot 3)
(4) HMIM slot (slot 6) (5) HMIM slot (slot 5) (6) SIC slot (slot 1)
(7) SIC slot (slot 2)
5
2
1
3 4
7 6
