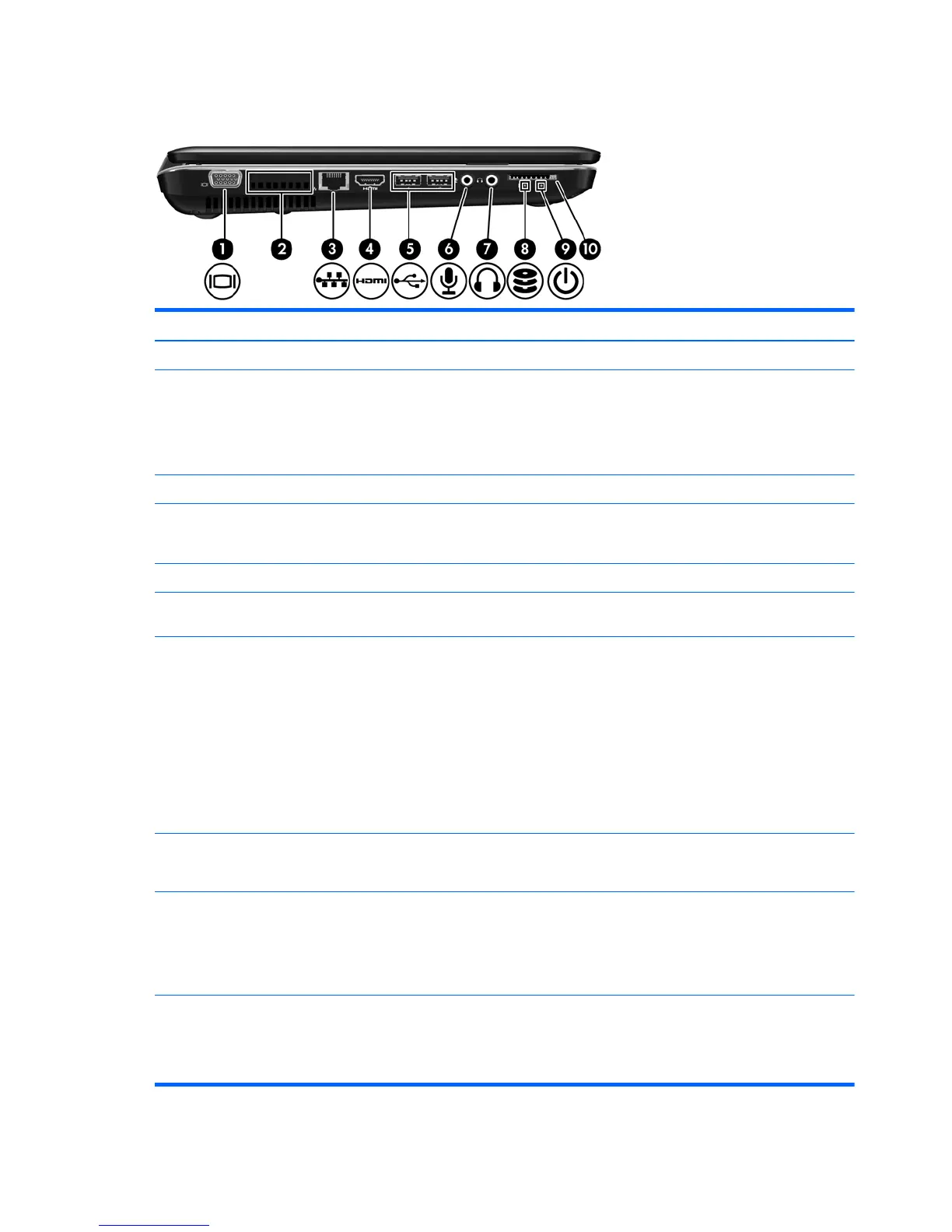

Left side
Item Component Description
(1) External monitor port Connects an external VGA monitor or projector.
(2) Vents (2) Enable airflow to cool internal components.
NOTE: The computer fan starts up automatically to
cool internal components and prevent overheating. It
is normal for the internal fan to cycle on and off during
routine operation.
(3) RJ-45 (network) jack Connects a network cable.
(4) HDMI port Connects an optional video or audio device, such as
a high-definition television, or any compatible digital
or audio component.
(5) USB ports (2) Connect optional USB devices.
(6) Audio-in (microphone) jack Connects an optional computer headset microphone,
stereo array microphone, or monaural microphone.
(7) Audio-out (headphone) jack Produces sound when connected to optional powered
stereo speakers, headphones, ear buds, a headset,
or television audio.
WARNING! To reduce the risk of personal injury,
adjust the volume before putting on headphones,
earbuds, or a headset. For additional safety
information, refer to the Regulatory, Safety, and
Environmental Notices.
NOTE: When a device is connected to the jack,
the computer speakers are disabled.
(8) Drive light
●
Blinking white: The hard drive is being accessed.
● Off: The hard drive is idle.
(9) Power light
●
White: The computer is on.
● Blinking white: The computer is in the Sleep
state.
●
Off: The computer is off or in Hibernation.
(10) Digital Media Slot Supports the following digital card formats:
● MultiMediaCard
● Secure Digital (SD) Card
14 Chapter 2 External component identification
