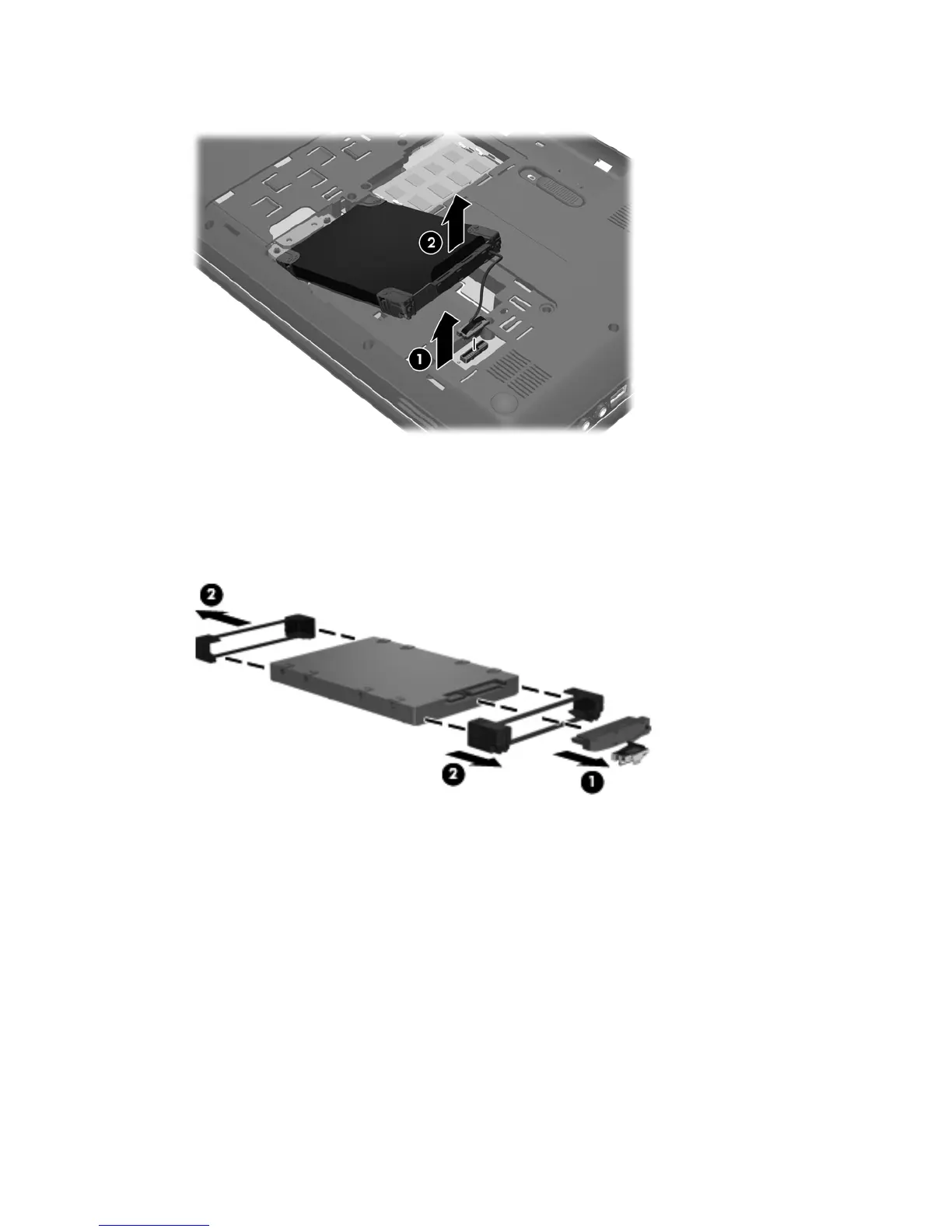

2. Lift the front edge of the hard drive (2) until it rests at an angle.
3. Remove the hard drive.
4. If it is necessary to replace the hard drive cable (1) or the hard drive isolators (2) from the hard
drive, remove and replace the components. The hard drive cable is included in the Cable Kit,
spare part 639442-001. The hard drive isolators are available in the Hard Drive Hardware Kit,
spare part number 639444-001.
Reverse this procedure to reassemble and install the mass storage device.
52 Chapter 4 Removal and replacement procedures
