Remove the keyboard:

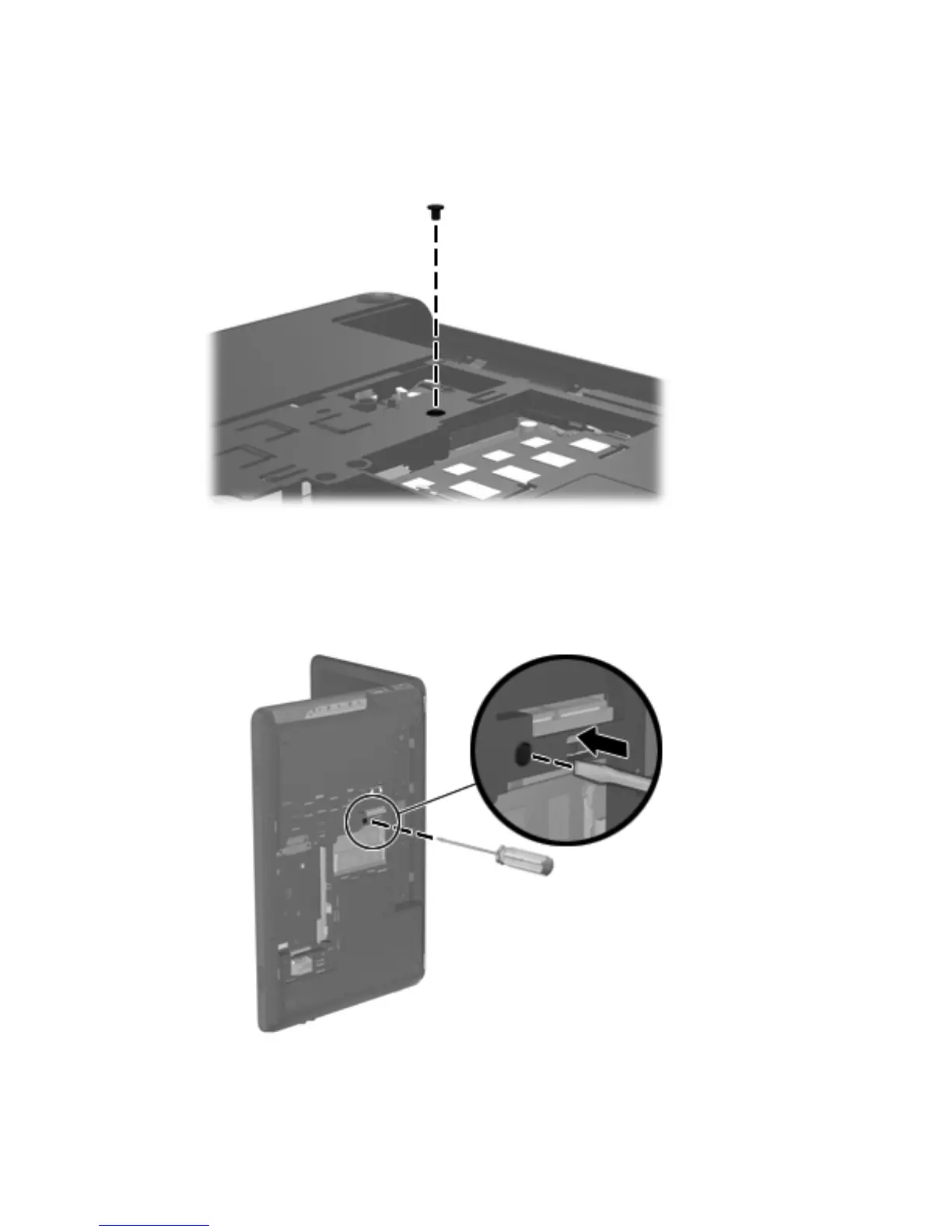

1. Remove the Phillips PM2.5×6.0 screw that secures the keyboard to the computer.
2. Rest the computer on its left side.
3. Open the computer.
4. Insert a screw driver or similar thin tool into the keyboard screw hole, and then press on the back
of the keyboard until the keyboard disengages from the computer.
5. Turn the computer right-side up with the front toward you.
Component replacement procedures 57
