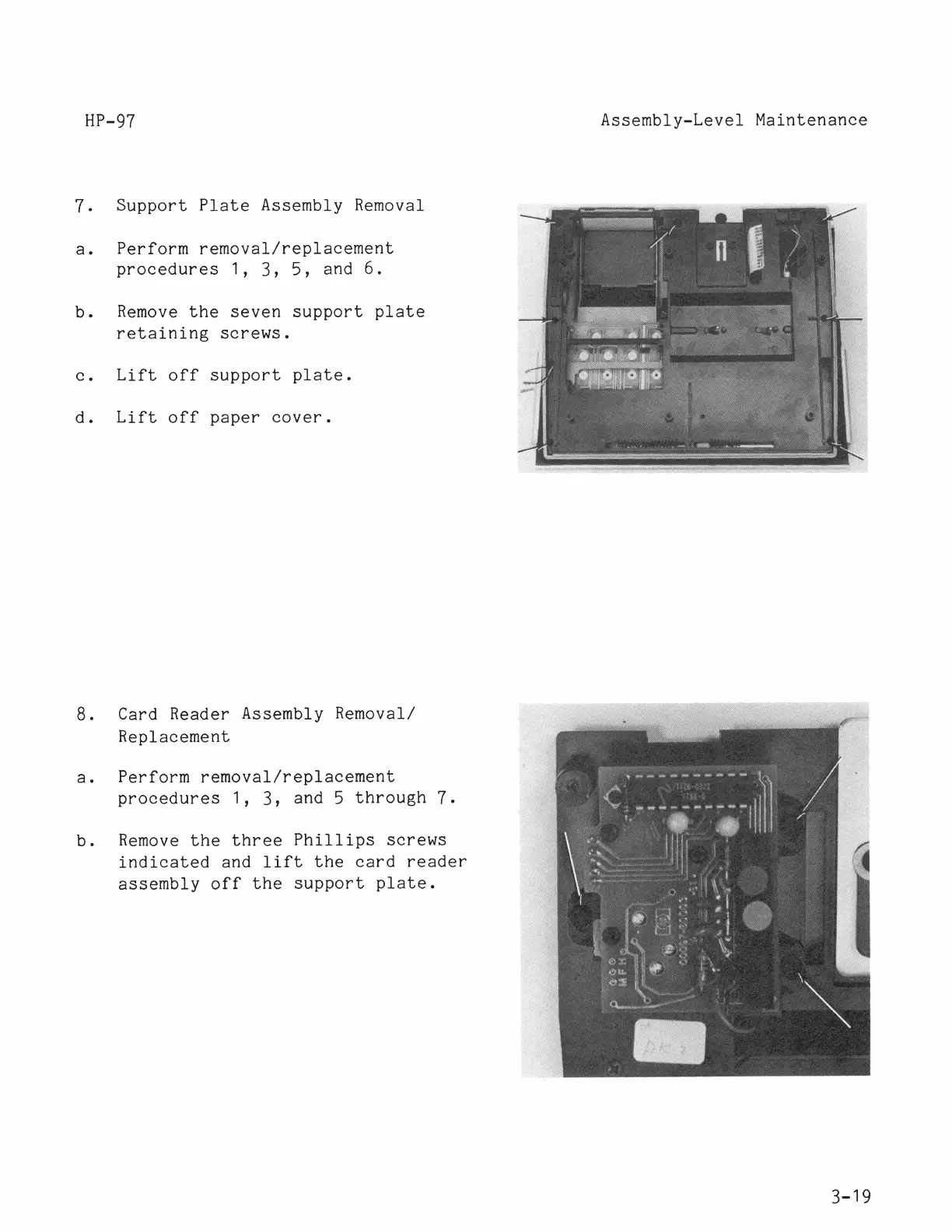

Support Plate Assembly Removal
Perform removal/replacement
procedures 1, 3, 5, and 6.
Remove the seven support plate
retaining screws.
Lift off support plate.
Lift off paper cover.
Card Reader Assembly Removal/
Replacement
Perform removal/replacement
procedures 1, 3, and 5 through 7.
Remove the three Phillips screws
indicated and 1ift the card reader
assembly off the support plate.
