Switch Meshing
Operating Notes for Switch Meshing
Spanning Tree Operation with Switch Meshing
Using MSTP with several switches and no switch meshing configured can
result in unnecessarily blocking links and reducing available bandwidth. For
example:

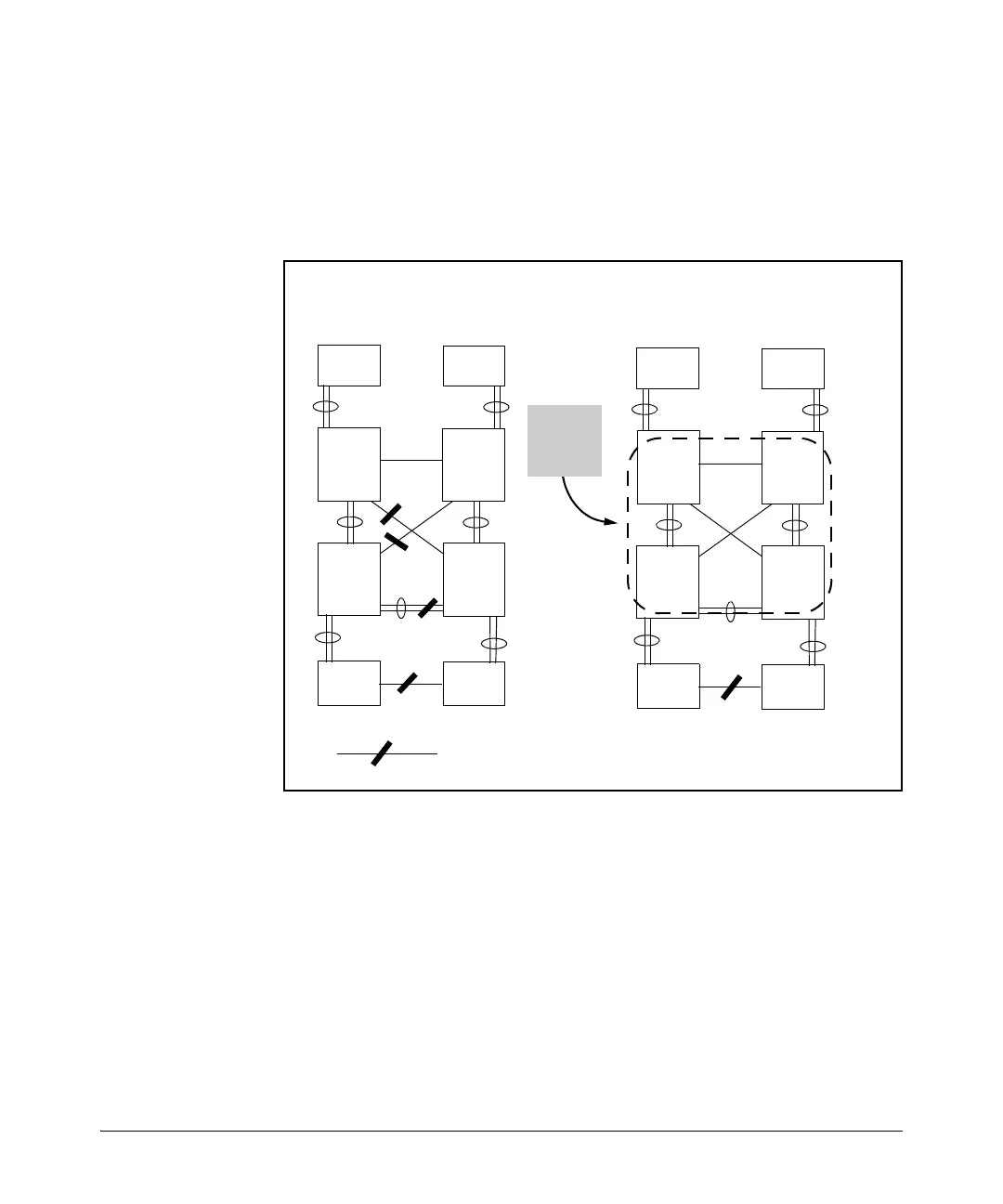

Figure 4-13. Example Using STP Without and With Switch Meshing
If you are going to use spanning-tree in a switch mesh, all switches in the mesh
should be configured with the same type of spanning-tree: 802.1d/STP, 802.1w/
RSTP, or 802.1s/MSTP. Spanning-Tree interprets a meshed domain as a single
link. However, on edge switches in the domain, MSTP will manage non-
meshed redundant links from other devices. For example:
Switch
Mesh
Domain
Problem:
MSTP enabled and
creating traffic
bottlenecks.
Solution:
Enabling meshing on links between
switch ports removes MSTP blocks
on meshed redundant links.
Switch
Server
Switch
Server
Switch
Switch
Switch
Switch
Meshed
Switch
Server
Meshed
Switch
Server
Meshed
Switch
Meshed
Switch
Switch
Switch
= MSTP Blocking a Redundant Link

HP J8693A Specifications

General

Device Type	Switch
Model	J8693A
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
VLAN Support	Yes
Jumbo Frame Support	Yes
MAC Address Table	8000 entries
Manageable	Yes
Power Supply	Internal
Form Factor	1U
Management	Web, CLI, SNMP
Layer	Layer 2
Ports	24 x 10/100/1000 + 4 x shared SFP
Dimensions	17.3 x 10.2 x 1.7 in (44 x 26 x 4.3 cm)
