HP J8697A Installation Guide

3

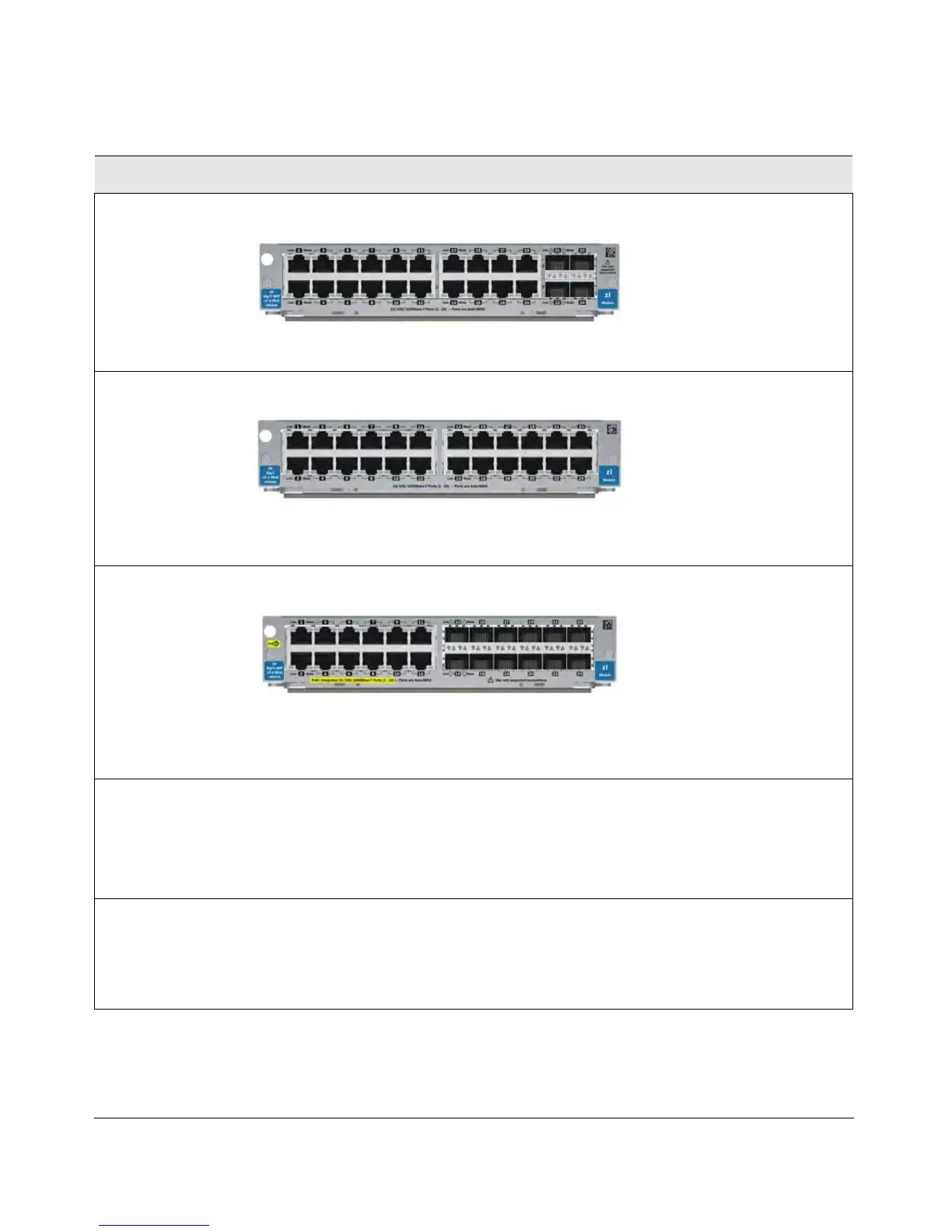

HP Switch v2 zl Modules
HP 20-port Gig-T / 4-
port SFP v2 zl Module
(J9549A)
1
20 twisted-pair ports with RJ-45
connectors for 10/100/1000Base-T
and 4 ports for installing any of the
supported HP transceivers. All RJ-
45 ports have the IEEE 802.3ab
Auto MDI/MDI-X (HP Auto-MDIX)
feature. This module does not
support IEEE 802.3at PoE+.
HP 24-port Gig-T v2 zl
Mo
du
le (J9550A)
1
24 twisted-pair ports with RJ-45
connectors for 10/100/1000Base-T
operation over Category 5 or better
100-ohm UTP or STP cable
(category 5e recommended for
Gigabit). All ports have the IEEE
802.3ab Auto MDI/MDI-X (HP
Auto-MDIX) feature.This module
does not support IEEE 802.3at
PoE+.
HP 12-port Gig-T / 12-
p
o
rt SFP v2 zl Module
(J9637A)
1
12 twisted-pair ports with RJ-45
connectors for 10/100/1000Base-T
operation over Category 5 or better
100-ohm UTP or STP cable
(category 5e recommended for
Gigabit) and 12 ports for installing
any of the supported HP
transceivers. All RJ-45 ports have
the IEEE 802.3ab Auto MDI/MDI-X
(HP Auto-MDIX) featureand
support IEEE 802.3at PoE+.
For supported transceivers, visit
www.hp.com/networking/support.
– In the first textbox, type J4858 (for 100-Mb and Gigabit information), or J8436 (for 10-Gigabit information).
– Select any of the products that display in the dropdown list.
– Select P
roduct support information. The
n click on Manuals and find the Transceiver Support Matrix.
For technical details of cabling and technologies see "Cabling and Technology Information" on page 36
.
1
These modules require switch software version K.15.02 or greater on both the E5400 zl chassis and E8200 zl chassis.
2
This module requires switch software version K.15.04 or greater on both the E5400 zl chassis and E8200 zl chassis.
Contact your HP authorized networking products reseller or your HP networking representative for information on
availability of other modules. You can also visit the HP networking products Web site http://www.hp.com/networking
to get more information.
Module Description

HP J8697A Specifications

General

Ports	24
Form Factor	Rack-mountable
Power Supply	Internal
Management	Managed
VLAN Support	Yes
Jumbo Frame Support	Yes
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Model	HP J8697A
Port Type	10/100/1000BASE-T
Layer	Layer 2
