HP J8697A Installation Guide

5

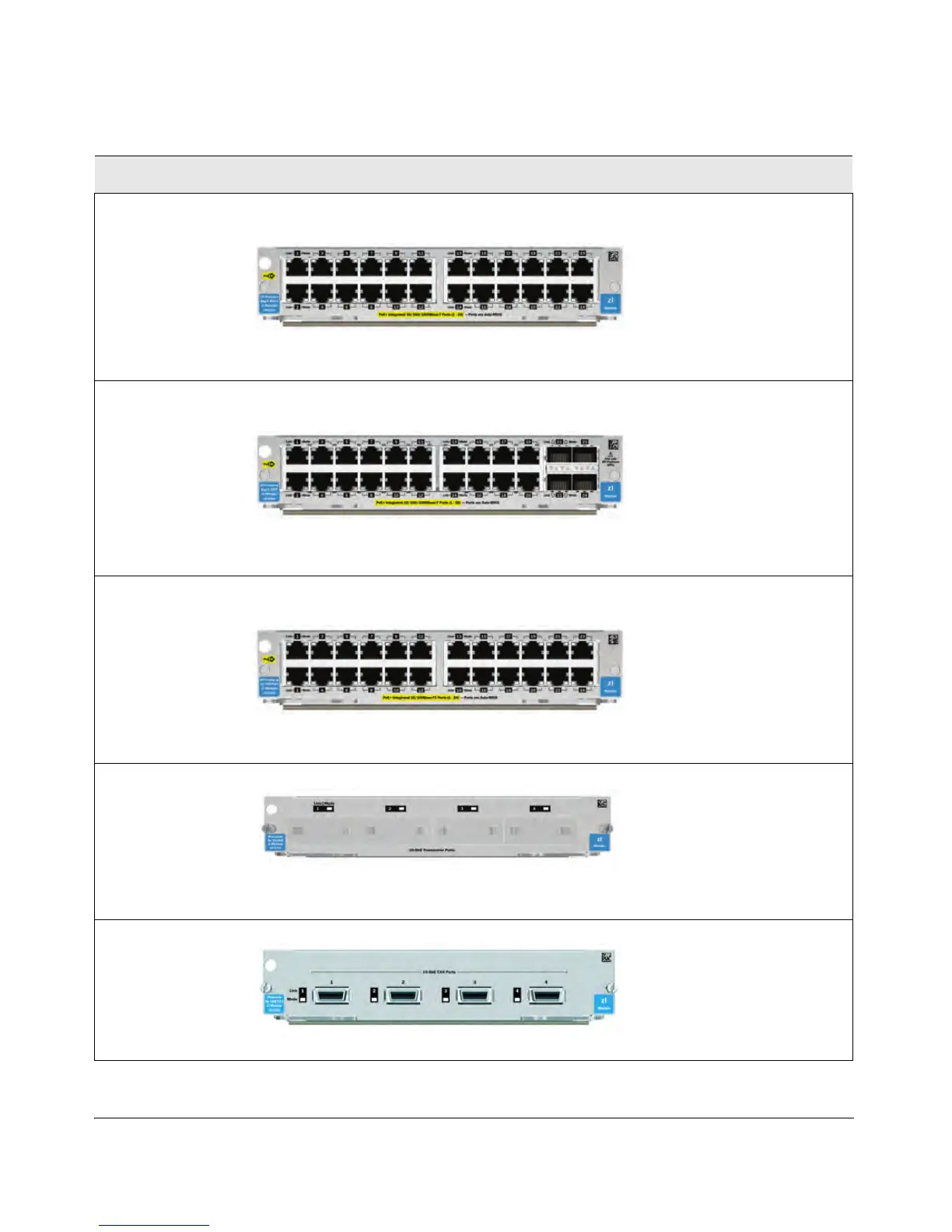

HP Switch zl Modules
HP 24-Port 10/100/1000
PoE+ zl Module
(J9307A)
3
24 twisted-pair ports with RJ-45
connectors for 10/100/1000Base-T
operation over Category 5 or better
100-ohm UTP or STP cable
(category 5e recommended for
Gigabit). All ports have the IEEE
802.3ab Auto MDI/MDI-X (HP
Auto-MDIX) feature and support
IEEE 802.3at PoE+.
HP 20-Port 10/100/1000
Po
E+
/ 4-Port mini-
GBIC zl Module
(J9308A)
3
20 twisted-pair ports with RJ-45
connectors for 10/100/1000Base-T
ports that support PoE and 4 ports
for installing any of the supported
HP transceivers. All RJ-45 ports
have the IEEE 802.3ab Auto MDI/
MDI-X (HP Auto-MDIX) feature
and support PoE+. The mini-GBIC/
SFP ports do not support IEEE
802.3at PoE+.
HP 24-Port 10/100 PoE+
zl
M
odule (J9478A)
3
24 twisted-pair ports with RJ-45
connectors for 10/100 Base-TX
integrated operation over
Category 5 or better 100-ohm UTP
or STP cable. All ports have the
IEEE 802.3ab Auto MDI/MDI-X (HP
Auto-MDIX) feature and support
IEEE 802.3at PoE+.
HP Switch zl 4 port 10-
G
bE X
2 Module
(J8707A)
1

4 ports for installing any of the
supported HP 10-GbE X2
transceivers.
HP Switch zl 4 port 10-
G
bE CX4 Module
(J8708A)
2
4 ports for connecting 10-GbE
copper cable.
Module Description

HP J8697A Specifications

General

Ports	24
Form Factor	Rack-mountable
Power Supply	Internal
Management	Managed
VLAN Support	Yes
Jumbo Frame Support	Yes
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Model	HP J8697A
Port Type	10/100/1000BASE-T
Layer	Layer 2
