HP J8697A Planning And Implementation Guide

1-5
Introduction
Overview
Introduction
For example:
ProCurve 3500yl#(config) no power pre-std-detect
The dual-personality ports have either auto-sensing 10/100/1000Base-T RJ-45,
or mini-GBIC connectivity. The mini-GBIC ports do not support PoE. If any of
the mini-GBIC ports are used the corresponding RJ-45 port will not be supplied
with PoE power.

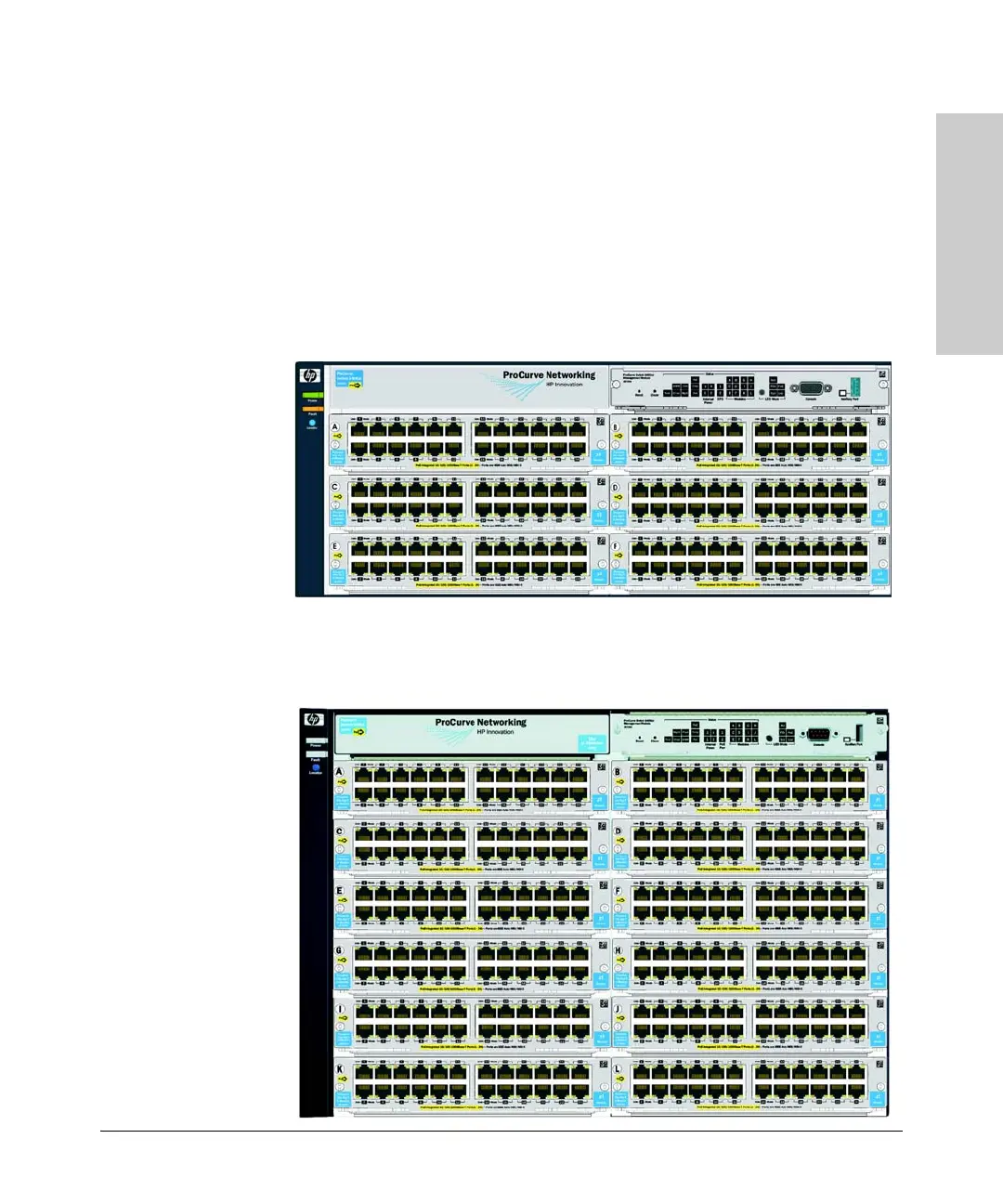

■ The ProCurve Switch 5406zl is a chassis that can hold up to six 24-port
modules to provide up to 144 10/100/1000Base-T RJ-45 ports for PoE
power.
■ The ProCurve Switch 5412zl is a chassis that can hold up to twelve 24-port
modules to provide up to 288 10/100/1000Base-T RJ-45 ports for PoE
power.

HP J8697A Specifications

General

Ports	24
Form Factor	Rack-mountable
Power Supply	Internal
Management	Managed
VLAN Support	Yes
Jumbo Frame Support	Yes
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Model	HP J8697A
Port Type	10/100/1000BASE-T
Layer	Layer 2
