Setting Up the Monitor
Mounting the Monitor
1. Remove the monitor base. Refer to “Removing the Monitor
Base” steps in the previous section.
After the base is removed from the monitor, four threaded
mounting holes are exposed on the monitor back panel to be
used for mounting purposes. These mounting holes are spaced 75
or 100mm apart and are compliant with the Video Electronics
Standards Association (VESA) standard for mounting flat panel
displays.

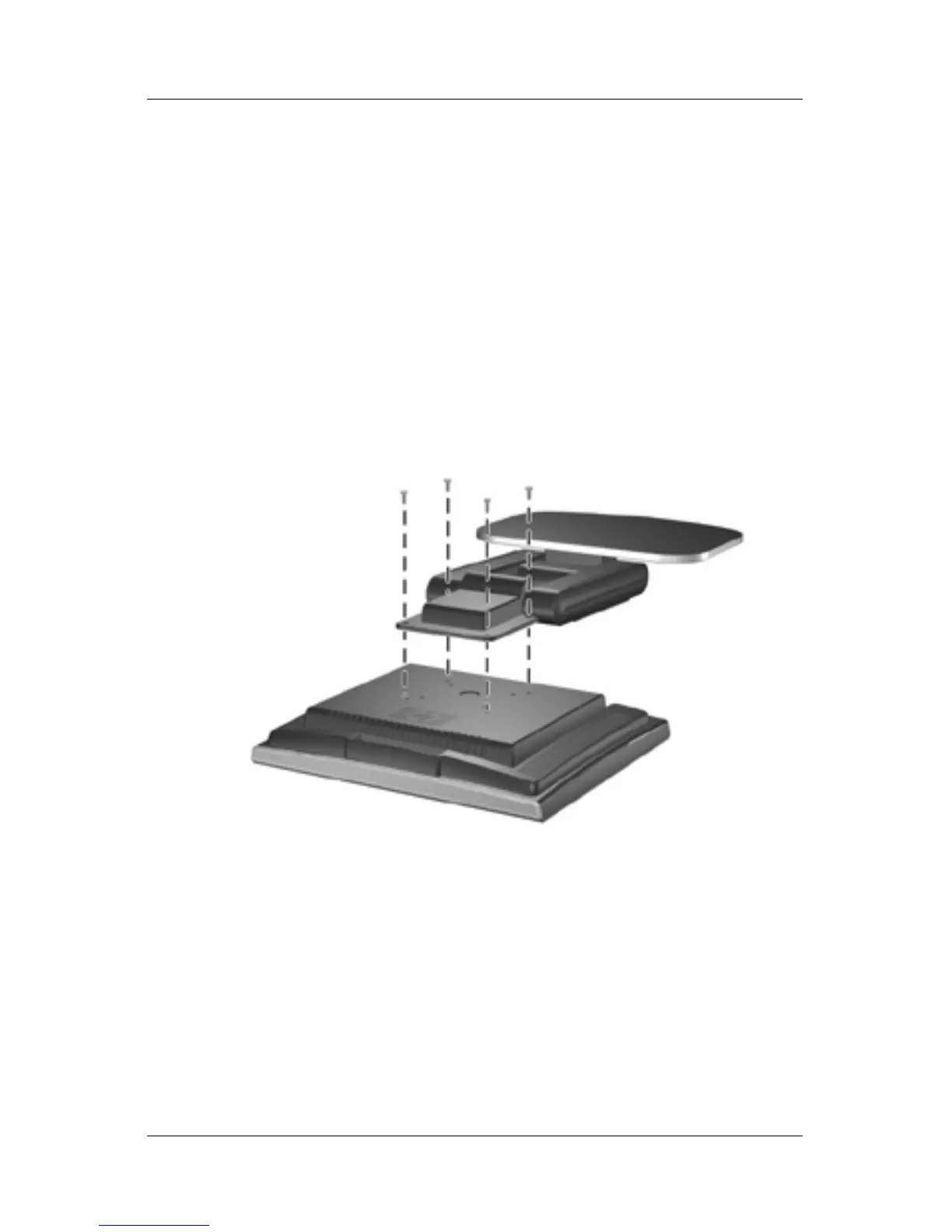

2. Mount the monitor to a swing arm or other mounting fixture
by following the instructions included with the mounting
fixture to be used.
User’s Guide 3-9
