2. To mount the monitor to a swing arm, wall or other mounting fixture using the HP Quick
Release, follow the instructions provided in the documentation that comes with Quick Release.

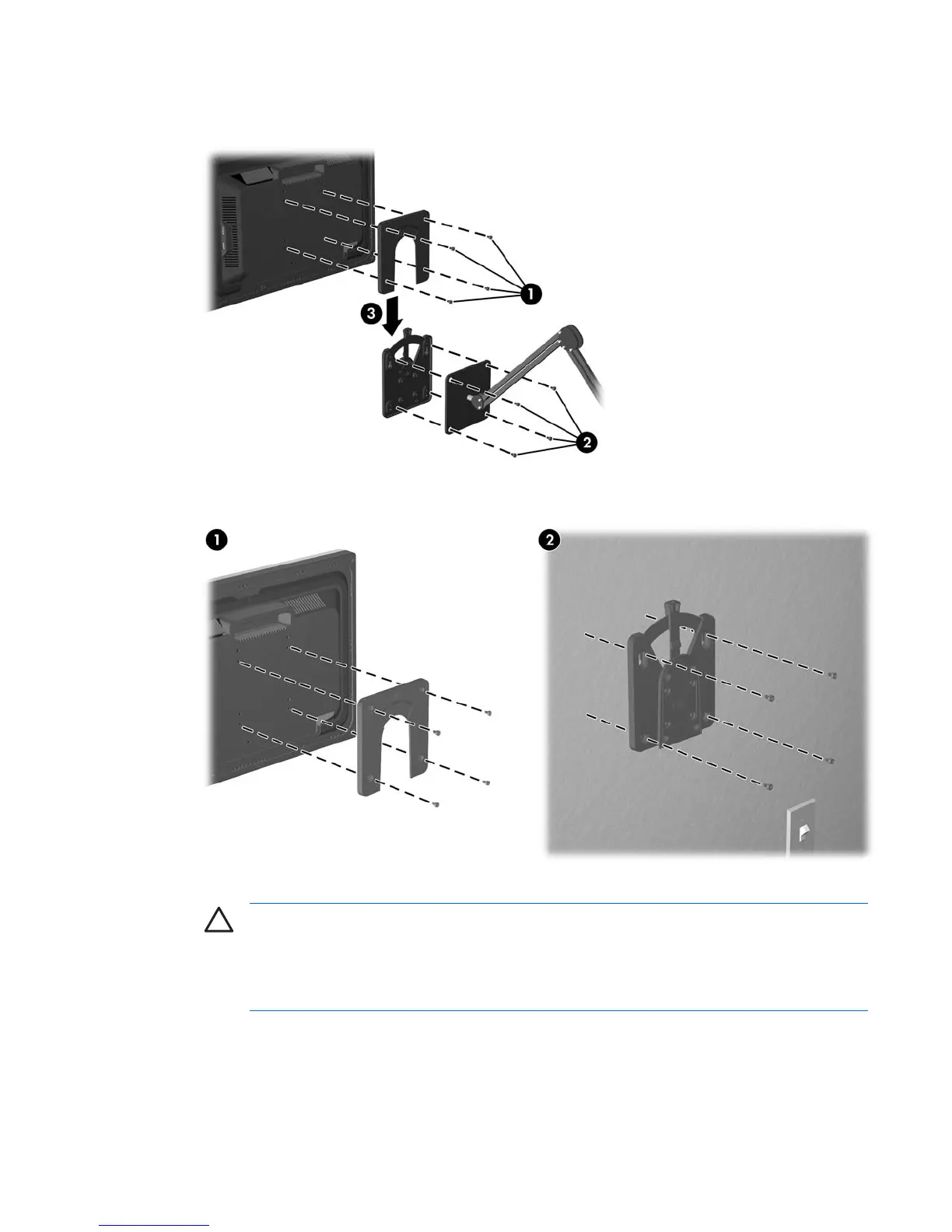

Figure 3-15 Mounting the Monitor to a Swing Arm Using Quick Release
Figure 3-16 Mounting the Monitor to the Wall Using Quick Release
CAUTION The Quick Release is designed to support a maximum of up to 24 lbs. (10.9
kg). If you are mounting to a wall, HP recommends that you consult with a qualified
engineering, architectural, or construction professional to determine the appropriate type
and quantity of mounting fasteners required for the application and to ensure that the
mounting solution is properly installed to support applied loads.
ENWW Mounting Solutions 15
