40 Chapter 2 - Removal and replacement Q1342-90910
Laser/scanner assembly
1 Remove the following assemblies:
z Toner cartridge, media tray, and cable pod. See “Toner cartridge”
on page 15 through “Cable pod” on page 17.
z Left side, back, right side, and top covers. See “Left side cover”
on page 18 through “Top cover” on page 29.
CAUTION Never operate the printer with the laser/scanner assembly exposed.
The reflected beam, although invisible, can damage your eyes. When
servicing the printer, replace the top cover before operating the printer.
2 Disconnect the ribbon cable from its socket (callout 1) on the
laser/scanner.
3 Disconnect the wire harness cable connector (callout 2) from the
connector assembly and unlace the harness from the cable
lance.

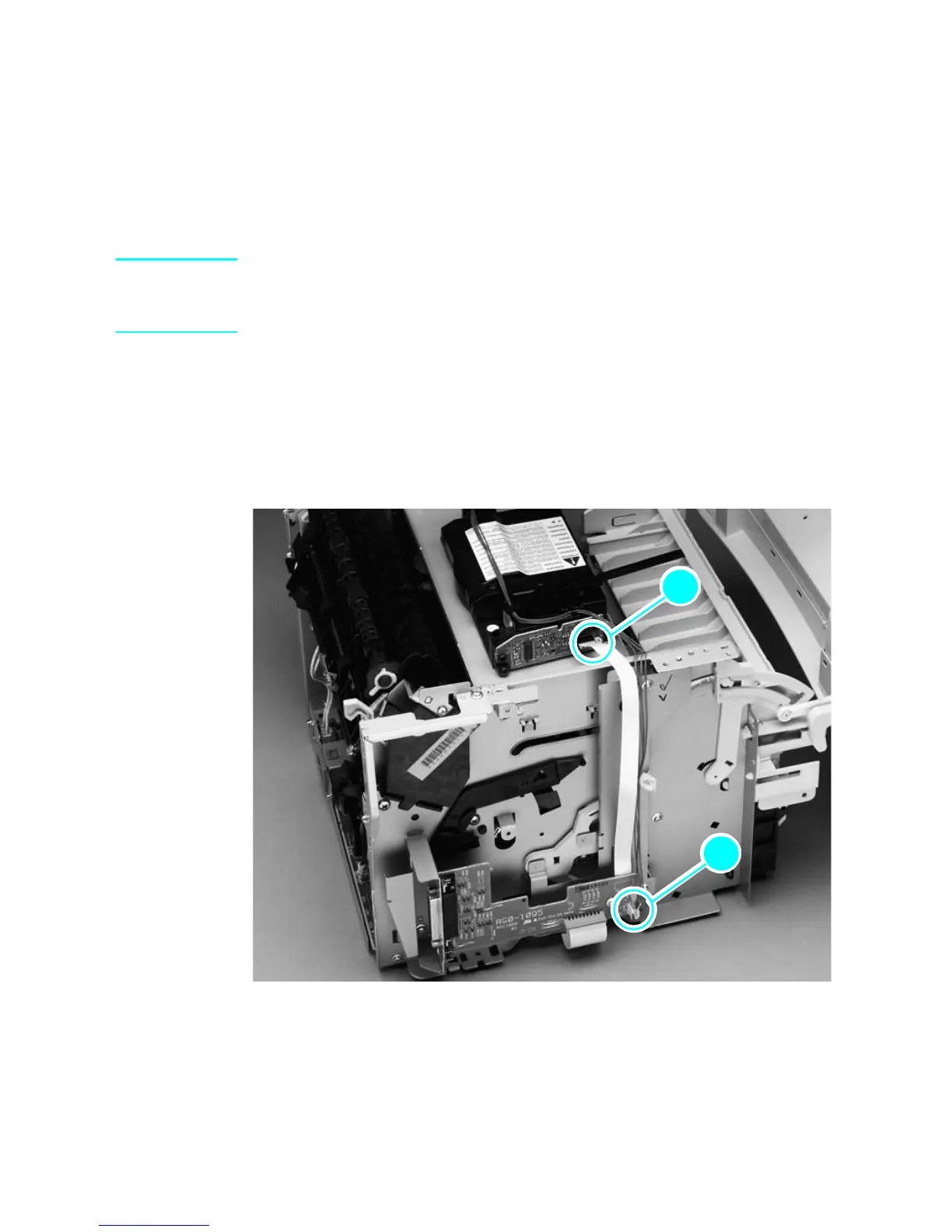

Figure 29. Disconnect the laser/scanner harnessing
1
2
2
1
