LaserJet 1100 control panel
Hardware overview
The LaserJet 1100 Control Panel consists of two LEDs and a Go key containing a
third LED. There is one amber LED (the Attention LED), and two green LEDs (the
Ready LED and the Go LED). The green LEDs are contained in the Go key. If the
scanner is attached, there are two additional buttons. Scanner modes are not shown
on the printer LEDs and scan keys have no effect on printer functionality.
Go key
The LaserJet 1100 Printer Control Panel’s single Go key will be the only means the
user has of interacting with the printer, except through software. Therefore, the Go key
must perform all actions the user needs. the Go key performs ten functions. These
functions are explained in the table below. See “Scanner control panel” on page 28.

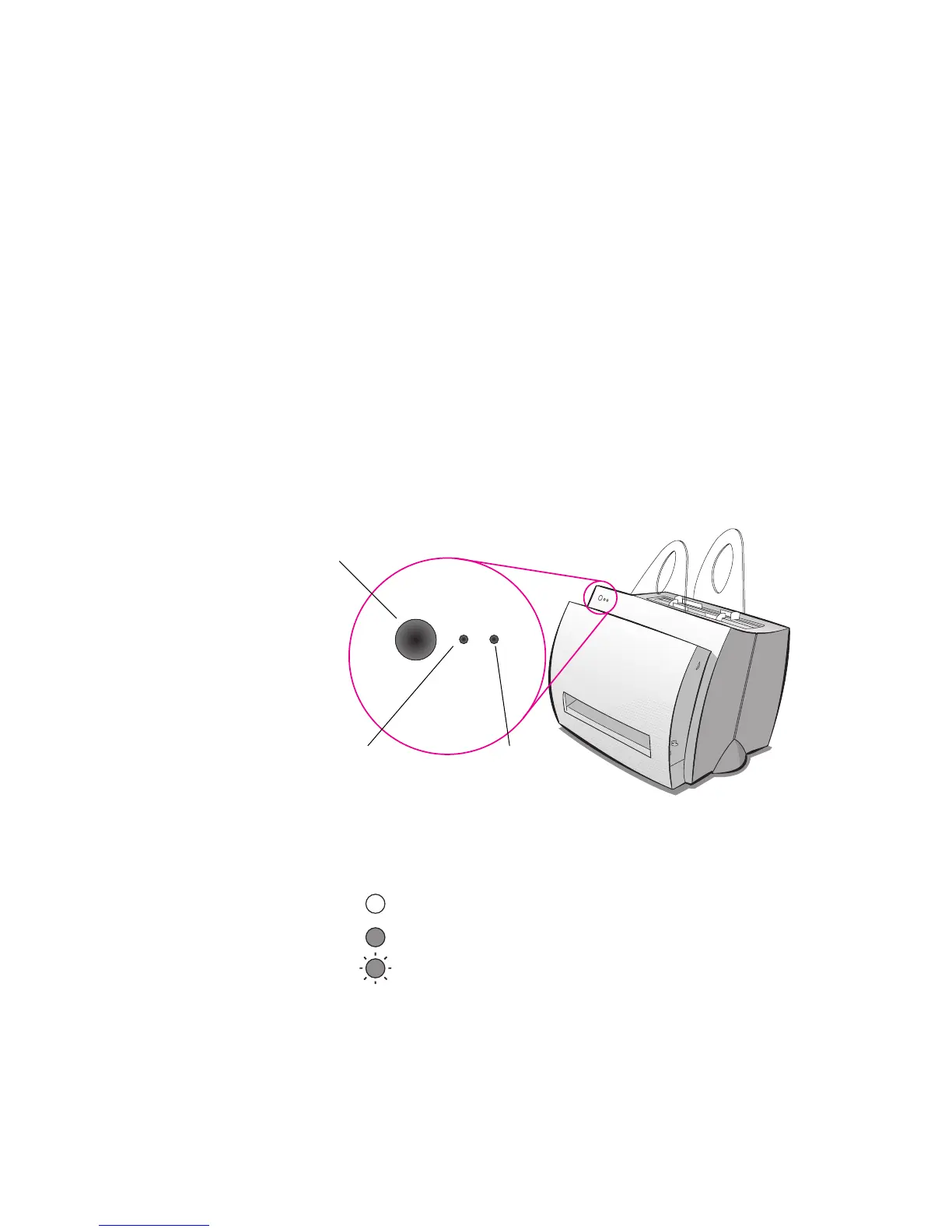

Figure 2-1 Printer light patterns
Attention light
Go key and light
Ready light
Symbol for “light off”
Symbol for “light blinking”
Symbol for “light on”
Light status legend
