EN Functional Overview
: Printer paper feed system
50

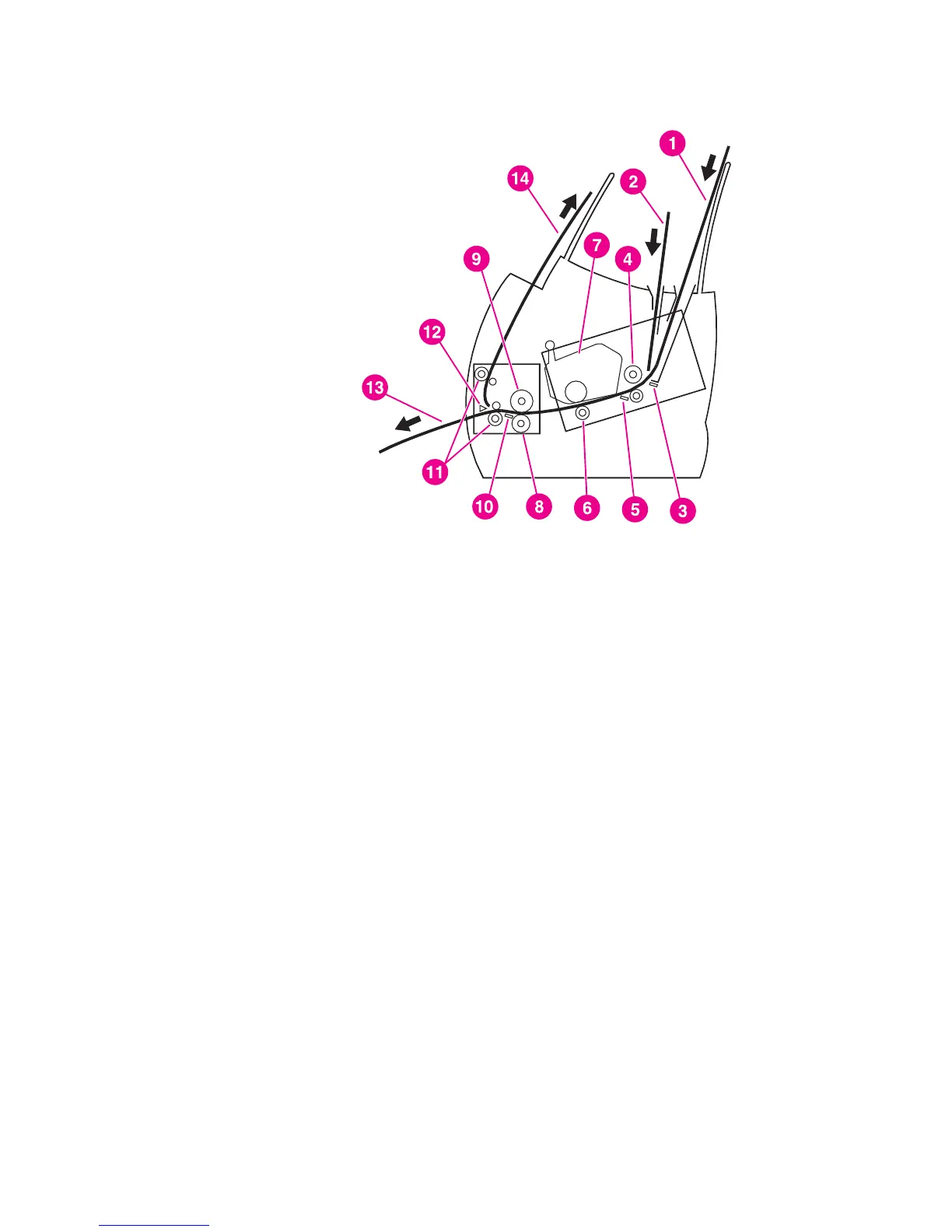

Figure 3-5 Simplified paper path
1
Paper input bin
2
Single sheet input slot
3
Paper sensor (PS001)
4
Pickup roller
5
Paper sensor (PS002)
6
Transfer roller
7
Toner cartridge
8
Pressure roller
9
Fusing unit
10
Paper exit sensor
11
Delivery rollers
12
Face-up/Face-down deflector
13
Face-down output path
14
Face-up output path
