EN Functional Overview
: Document scanner system (optional)
54

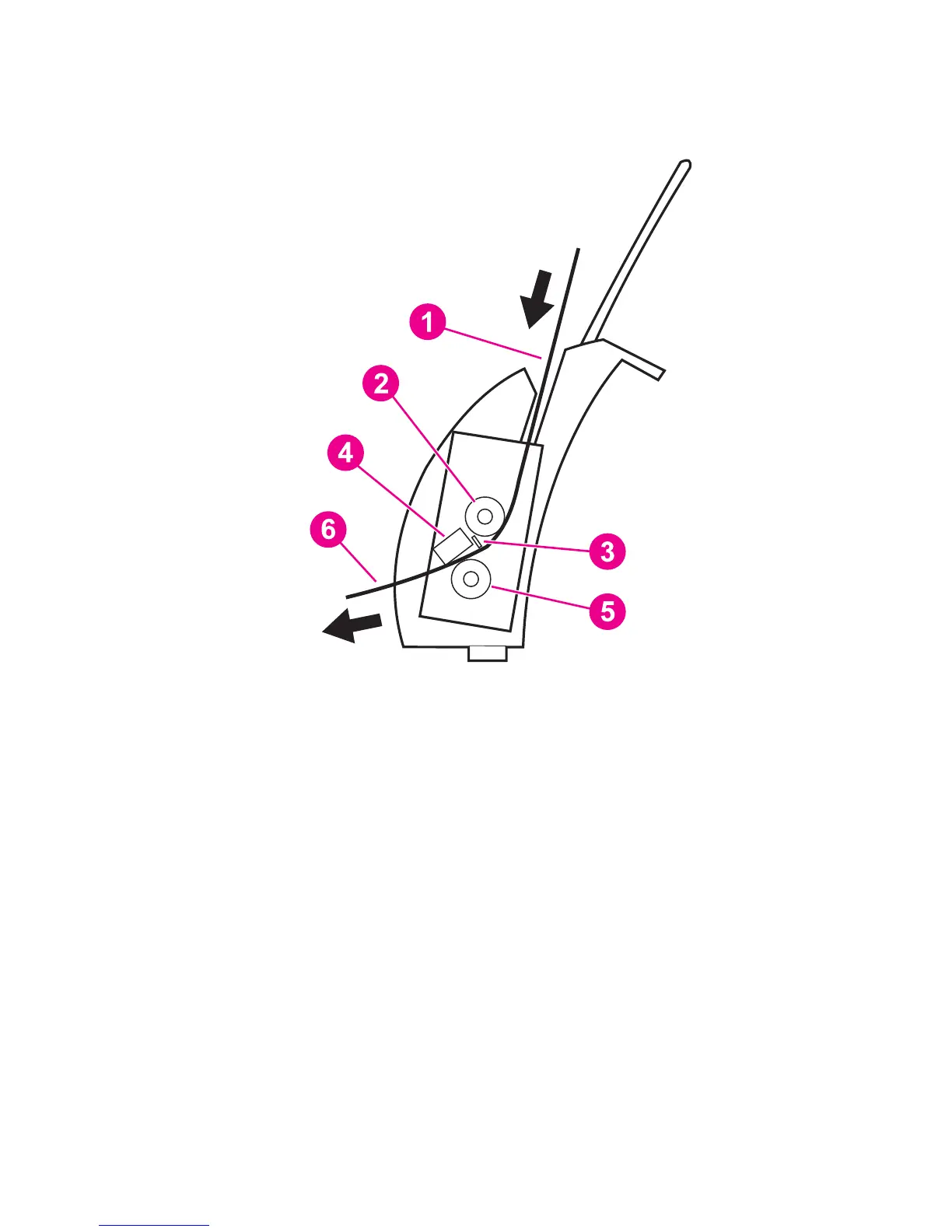

Figure 3-6 Simplified scanner document path
1
Input path
2
Document pickup roller
3
Document sensor
4
Contact image sensor (CIS)
5
CIS roller
6
Output path
