HP LaserJet 1100 - Contact Image Sensor Removal

EN Removal and Replacement
: External assemblies and covers
64
Contact image sensor removal

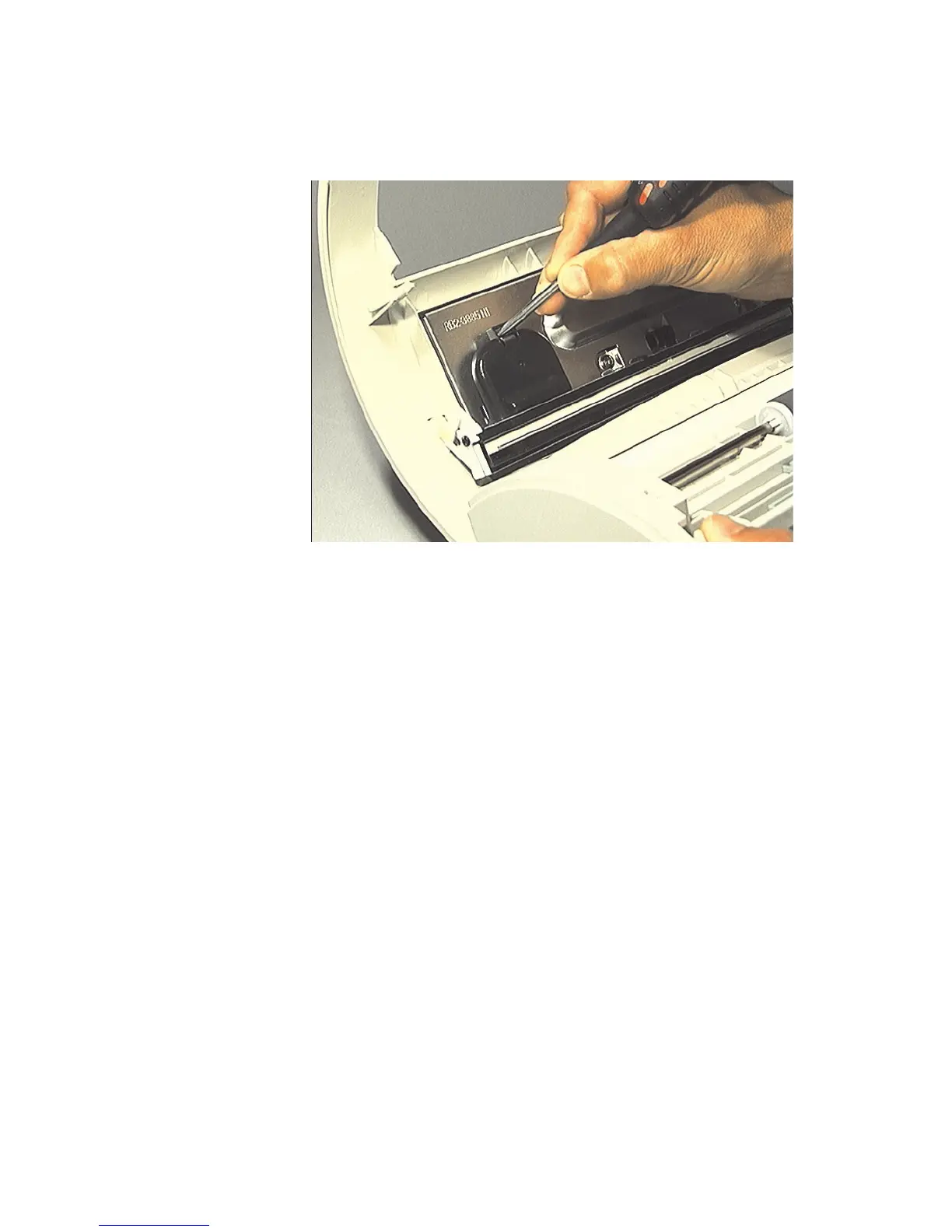

Figure 4-4 Removing the Contact Image Sensor (Continued on Next Page)
1
Remove the black rounded cable cover by pressing down on the small catch at the
top of the cover and then sliding the cover down and back.
