5. With both hands, grasp the side of the media that is most visible (this includes the
middle), and carefully pull it free from the printer.

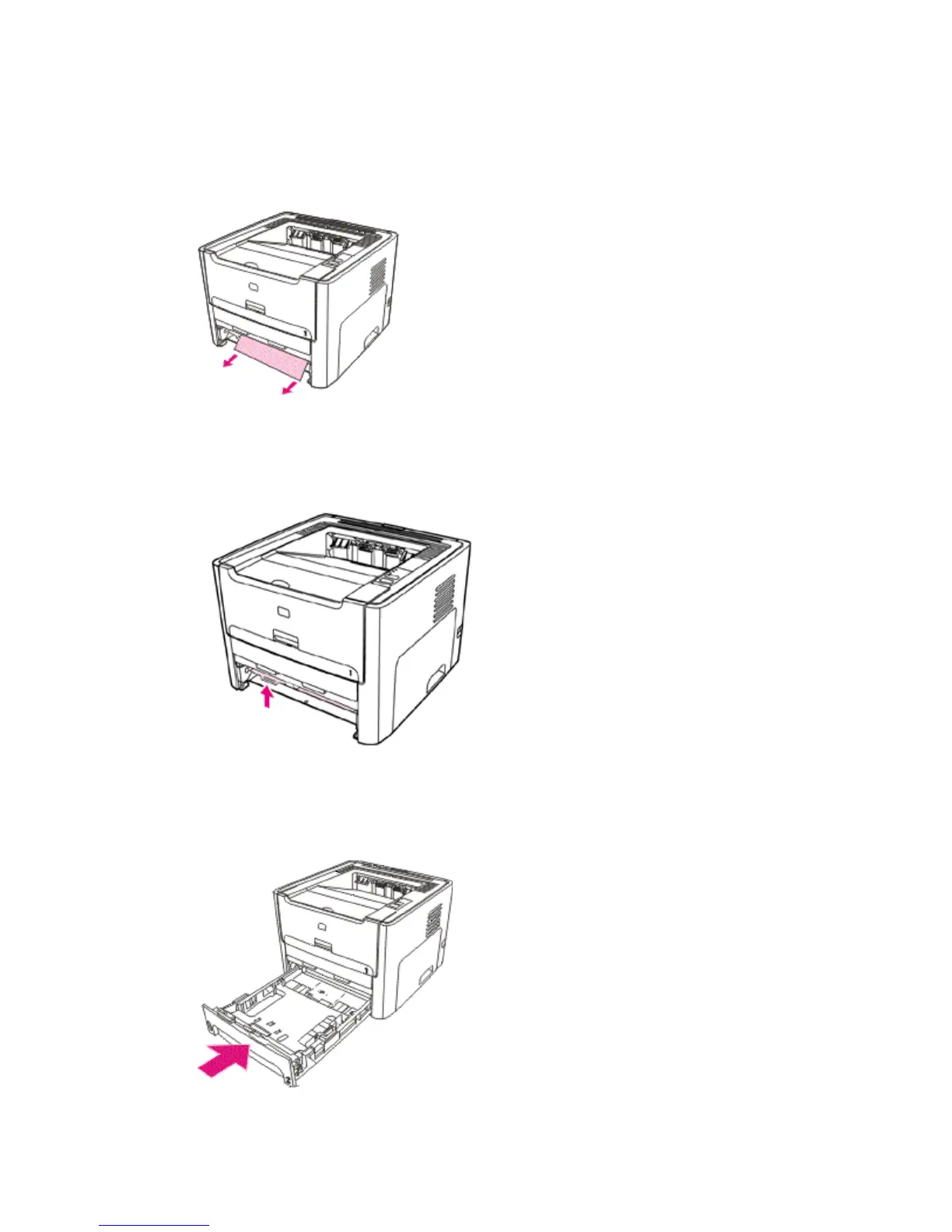

Figure 24: Remove jammed media
removing jammed media
6. Close the automatic two-sided path door.
Figure 25: Automatic two-sided path door (close)
closing front automatic two-sided path door
7. Reinsert the main input tray (Tray 2).
Figure 26: Main input tray (close)
reinserting main input tray
