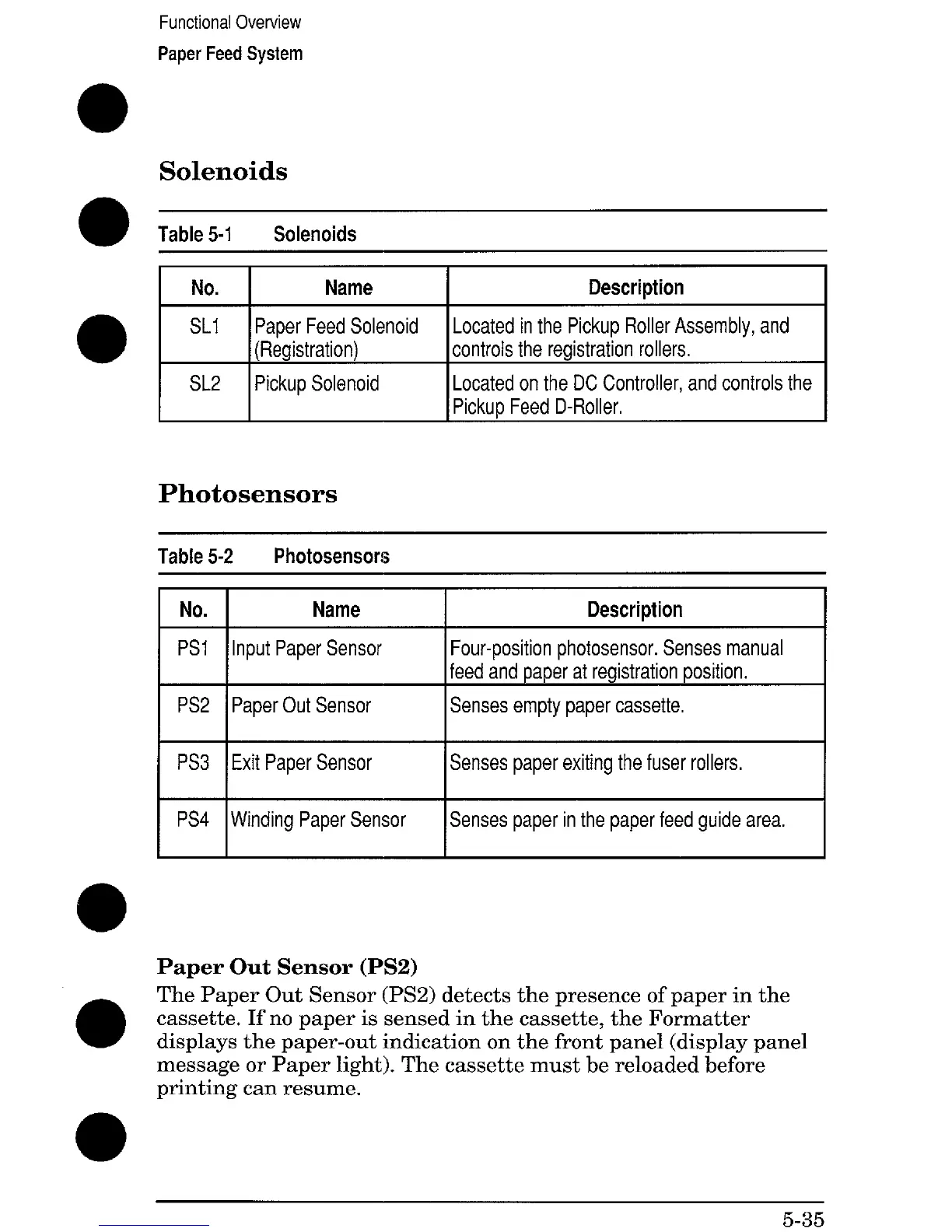

Functional Overview
Paper Feed System
Solenoids
Table 5-1 Solenoids
No. Name
Description
SLI
Paper Feed Solenoid
Located in the Pickup Roller Assembly, and
(Registration)
controls the registration rollers.
SL2 Pickup Solenoid
Located on the DC Controller, and controls the
Picku~ Feed D-Roller,
Photosensors
Table 5-2
Photosensors
Name
I
Description
Psl Input Paper Sensor
Four-position photosensor. Senses manual
feed and paper at registration position.
PS2 Paper Out Sensor
Senses empty paper cassette,
I
PS3 Exit Paper Sensor
Senses paper exiting the fuser rollers.
I
PS4 Winding Paper Sensor
Senses paper in the paper feed guide area.
Paper Out Sensor (PS2)
●
The Paper Out Sensor (PS2) detects the presence of paper in the
cassette. If no paper is sensed in the cassette, the Formatter
displays the paper-out indication on the front panel (display panel
message or Paper light). The cassette must be reloaded before
printing can resume.
5-35
