Parts and Diagrams
Common Hardware
Common Hardware

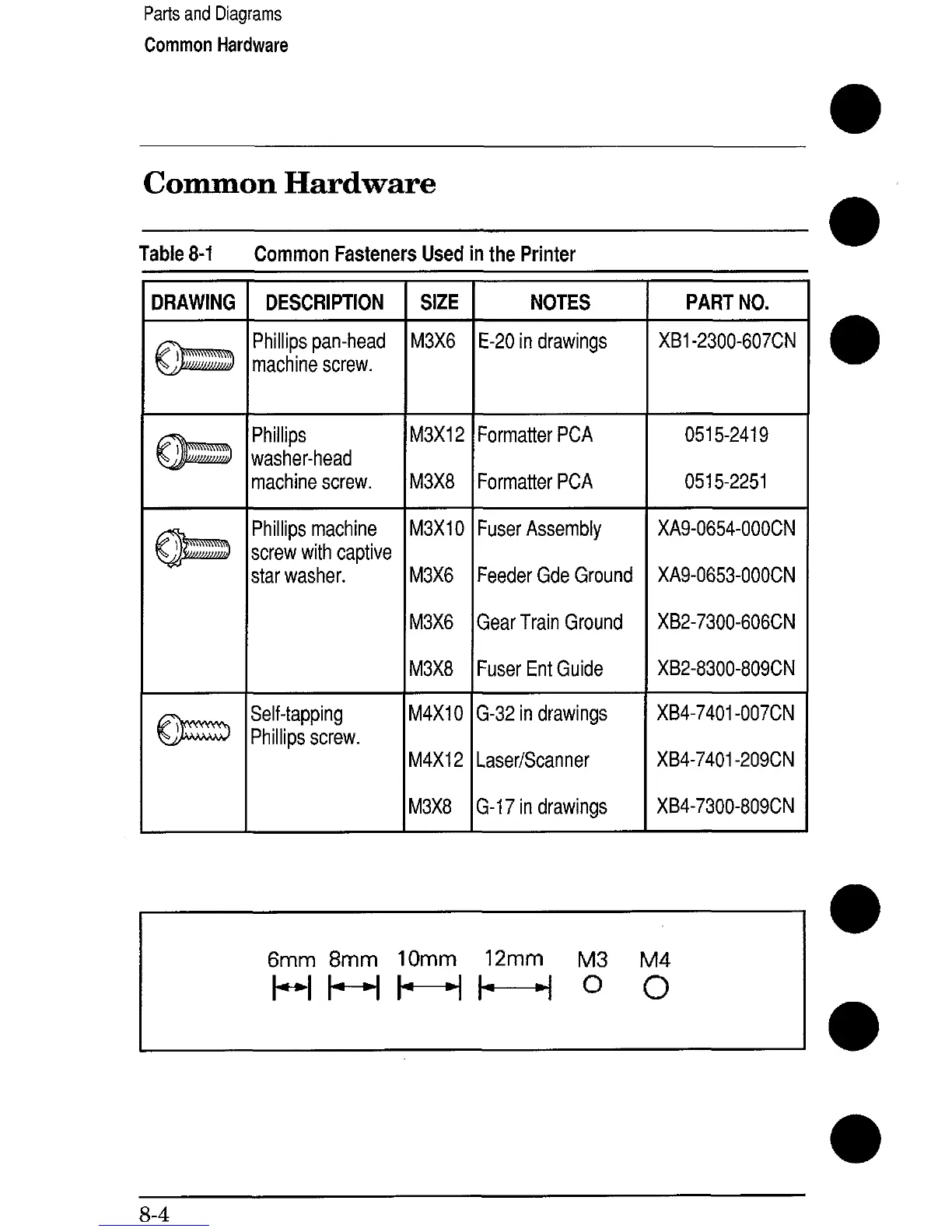

Table 8-1
Common Fasteners Used in the Printer
DRAWING
DESCRIPTION
SIZE
NOTES
PART NO.
Phillips pan-head
M3X6 E-20 in drawings
XBI-2300-607CN
machine screw.
Phillips
M3X12 Formatter PCA
0515-2419
washer-head
machine screw. M3X8 Formatter PCA
0515-2251
Phillips machine M3X1O Fuser Assembly
XA9-0654-OOOCN
screw with captive
star washer. M3X6 Feeder Gde Ground
XA9-0653-OOOCN
M3X6 Gear Train Ground XB2-7300-606CN
M3X8 Fuser Ent Guide XB2-8300-809CN
Self-tapping M4X1O G-32 in drawings XB4-7401 -O07CN
Phillips screw.
M4X12 Laser/Scanner XB4-7401 -209CN
M3X8 G-1 7 in drawings
XB4-7300-809CN
6mm 8mm 10mm 12mm
M3 M4
I-II----II--II--IO()
8-4
