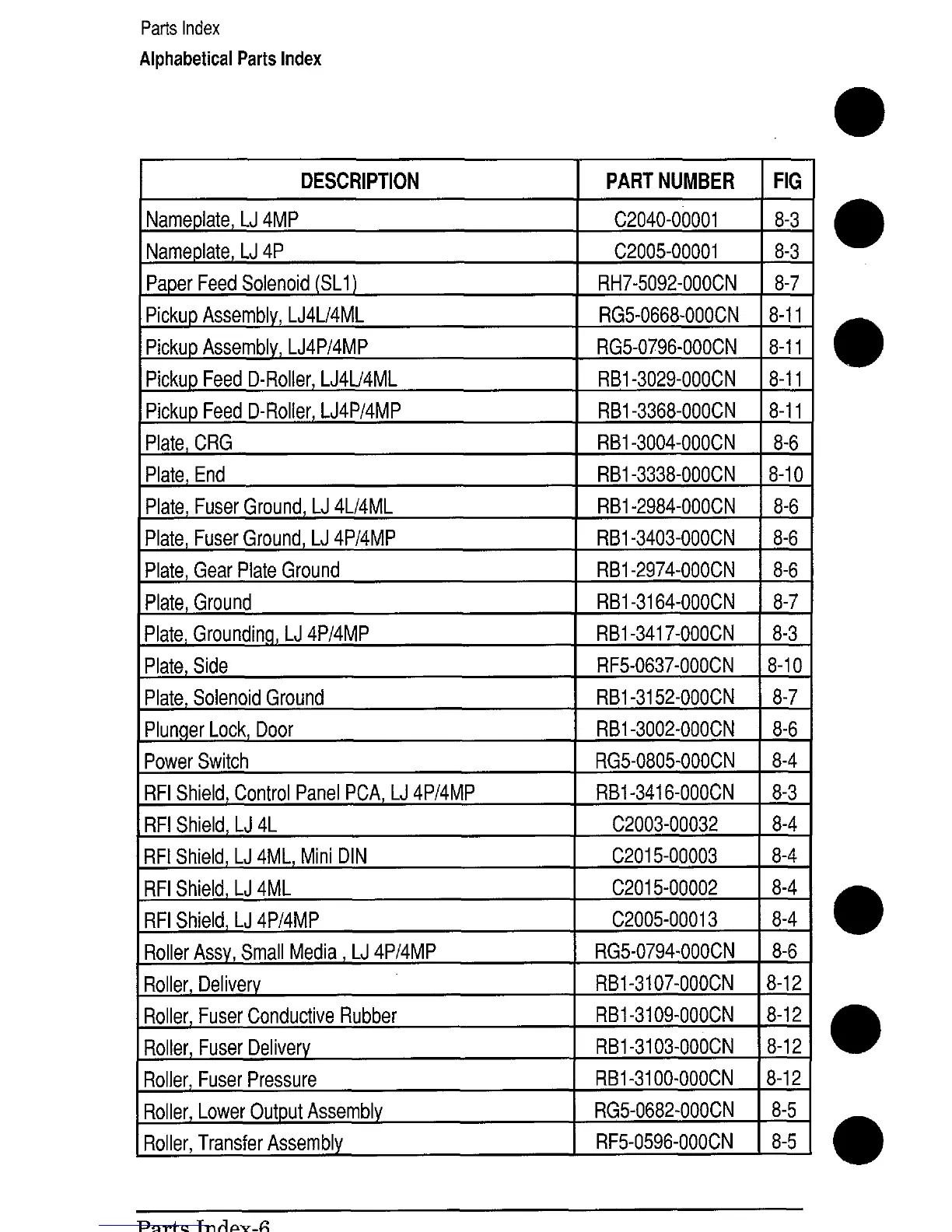

Parts Index
Alphabetical Parts Index
I
DESCRIPTION
I PART NUMBER I FIG I
Nameplate, LJ 4MP C2040-00001 8-3
Nameplate, LJ 4P C2005-00001
8-3
●
Paper Feed Solenoid (SL1 )
RH7-5092-OOOCN I 8-7
Pickup Assembly, LJ4L/4ML
RG5-0668-OOOCN 8-11
Pickup Assembly, LJ4P/4MP
RG5-0796-OOOCN 8-11
*
Pickup Feed D-Roller, LJ4U4ML
RBI -3029-OOOCN 8-11
Pickup Feed D-Roller, LJ4P/4MP RB1 -3368-OOOCN 8-11
Plate, CRG
RBI -3004-OOOCN
8-6
Plate, End RBI -3338-OOOCN 8-10
Plate, Fuser Ground, LJ 4L/4ML
RB1 -2984-OOOCN 8-6
Plate, Fuser Ground, LJ 4P/4MP RB1 -3403-OOOCN
8-6
Plate, Gear Plate Ground
RBI -2974-OOOCN 8-6
Plate, Ground
RBI -3164-OOOCN
8-7
Plate, Grounding, LJ 4P/4MP
RBI -3417-OOOCN
8-3
Plate, Side
RF5-0637-OOOCN
8-10
Plate, Solenoid Ground
RBI -3152-OOOCN 8-7
Plunger Lock, Door
RBI -3002-OOOCN 8-6
Power Switch
RG5-0805-OOOCN
8-4
RFI Shield, Control Panel PCA, LJ 4P/4MP
RB1 -3416-OOOCN 8-3
RFI Shield, LJ 4L
C2003-00032
8-4
RFI Shield, LJ 4ML, Mini DIN C2015-00003
8-4
RFI Shield, LJ 4ML
C2015-00002
8-4
RFI Shield, LJ 4P/4MP
C2005-00013
8-4
●
Roller Assy, Small Media, LJ 4P/4MP
RG5-0794-OOOCN
8-6
Roller, Delivery
RB1 -3107-OOOCN 8-12
Roller, Fuser Conductive Rubber
RBI -3109-OOOCN 8-12
Roller, Fuser Delivery
RB1-3103-OOOCN 8-12
●
Roller, Fuser Pressure
RBI -3100-OOOCN 8-12
Roller, Lower Output Assembly
RG5-0682-OOOCN
8-5
Roller, Transfer Assembly
RF5-0596-OOOCN 8-5
●
