Product Overview
Internal Assembly Locations

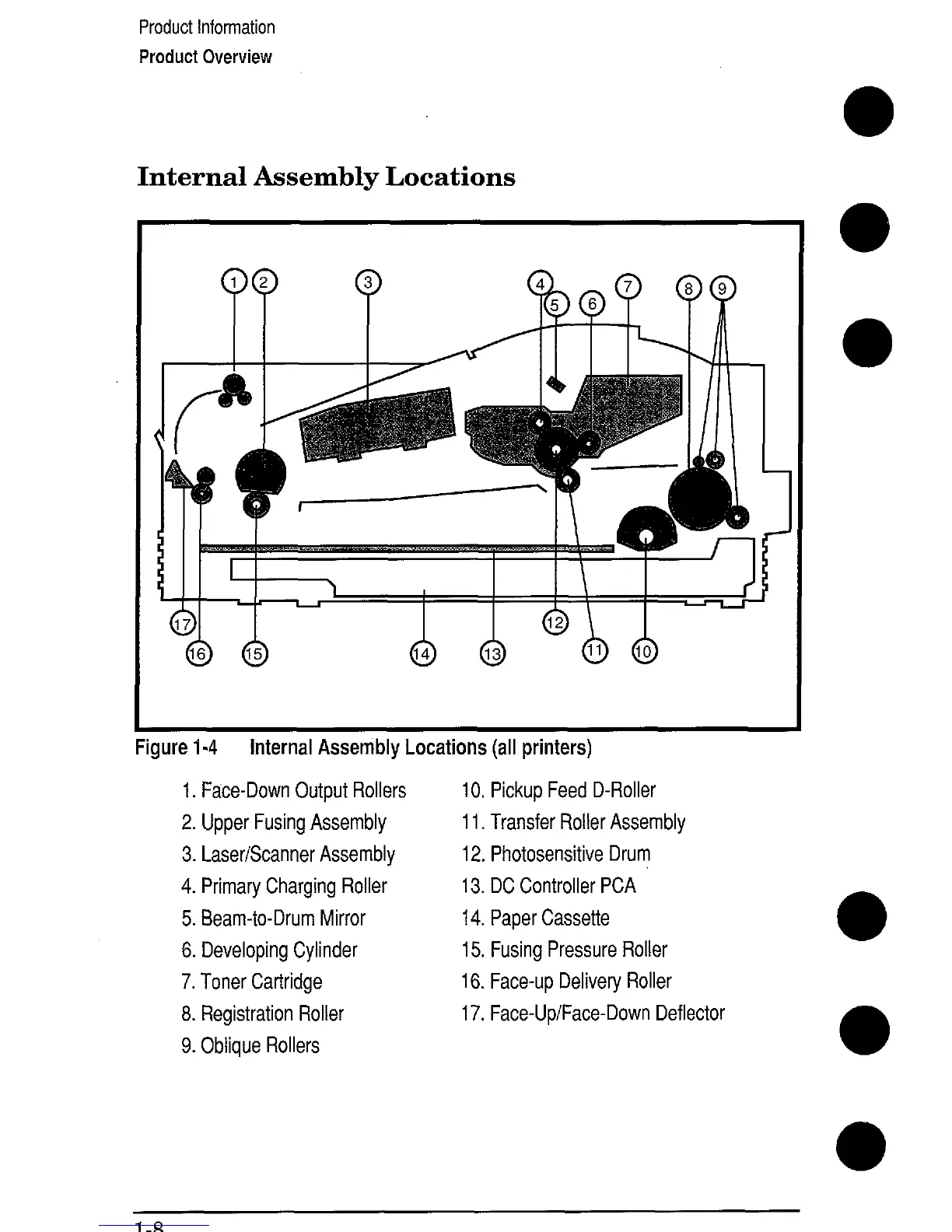

Figure 1.4 Internal Assembly Locations (all printers)
1, Face-Down Output Rollers
10, Pickup Feed D-Roller
2. Upper Fusing Assembly
11. Transfer Roller Assembly
3. Laser/Scanner Assembly
12, Photosensitive Drum
4. Primary Charging Roller
13. DC Controller PCA
5. Beam-to-Drum Mirror
14. Paper Cassette
6. Developing Cylinder
15. Fusing Pressure Roller
7. Toner Cartridge
16. Face-up Delivery Roller
8. Registration Roller
17. Face-Up/Face-Down Deflector
9. Oblique Rollers
