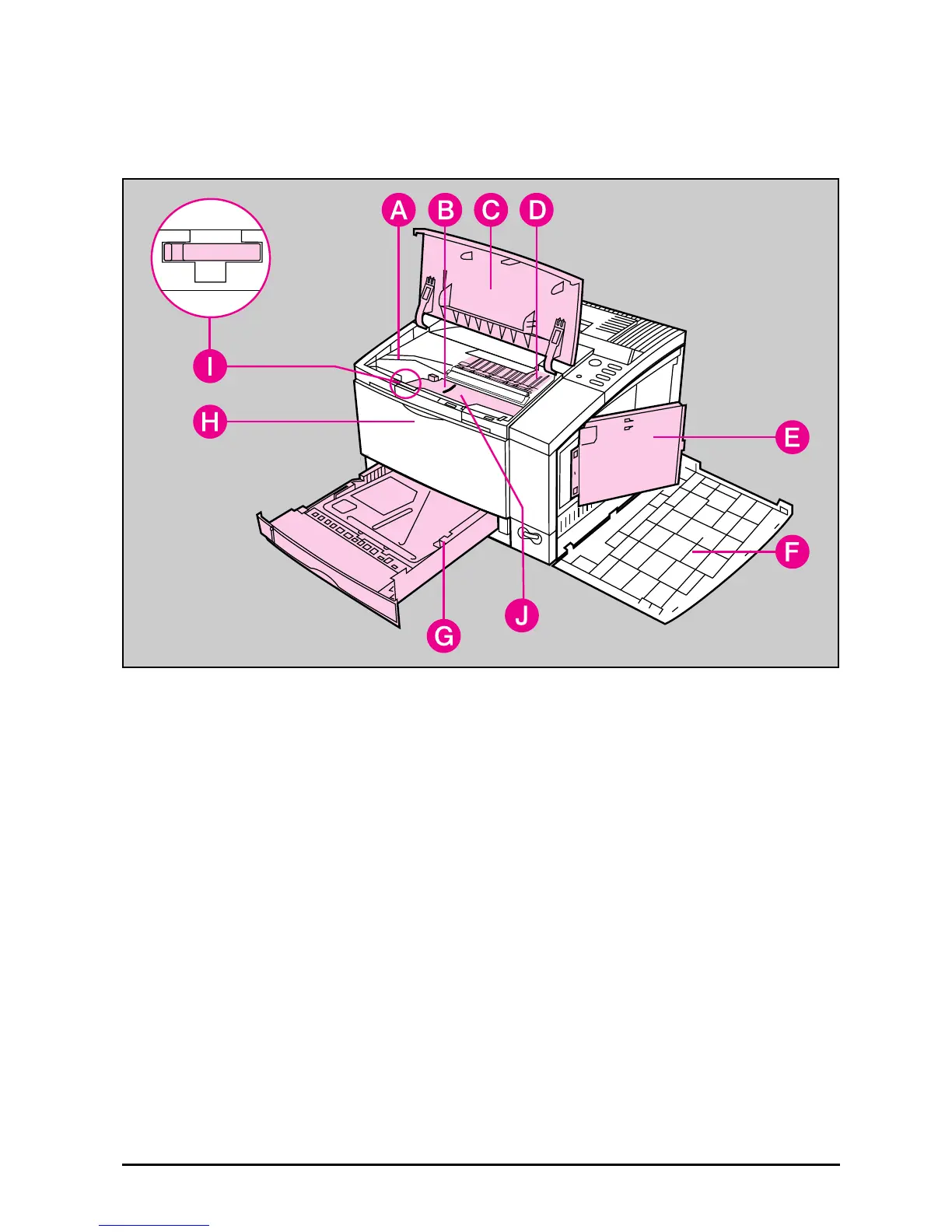

A Toner cartridge guides F Right side cover (opened)
B Paper access door
(for paper jam removal)
G 250-sheet Tray 2
C Top door (opened) H Tray 1 release point (pull to open)
D Toner cartridge location
(shown with cartridge removed)
I Transfer Roller removal tool
E SIMM slots access door J Serial Number label
Top/right side view with top door open and toner cartridge removed
EN Getting Started Guide 7
