Second-transfer high-voltage power supply and holder
CAUTION: ESD sensitive assembly.
Before proceeding, remove the following assemblies:
●
Formatter PCA. See
Formatter PCA on page 10.
●
Rear cover. See
Rear cover on page 56.
●
Right rear cover. See
Right rear cover on page 57.
●
Interconnect PCA. See
Interconnect PCA on page 171.
●
DC controller PCA and sheet-metal bracket. See
DC controller PCA on page 174.
Remove the second-transfer high-voltage power supply and holder
1. To remove the PCA only: Release four tabs (callout 1). Proceed to the last step in this section.

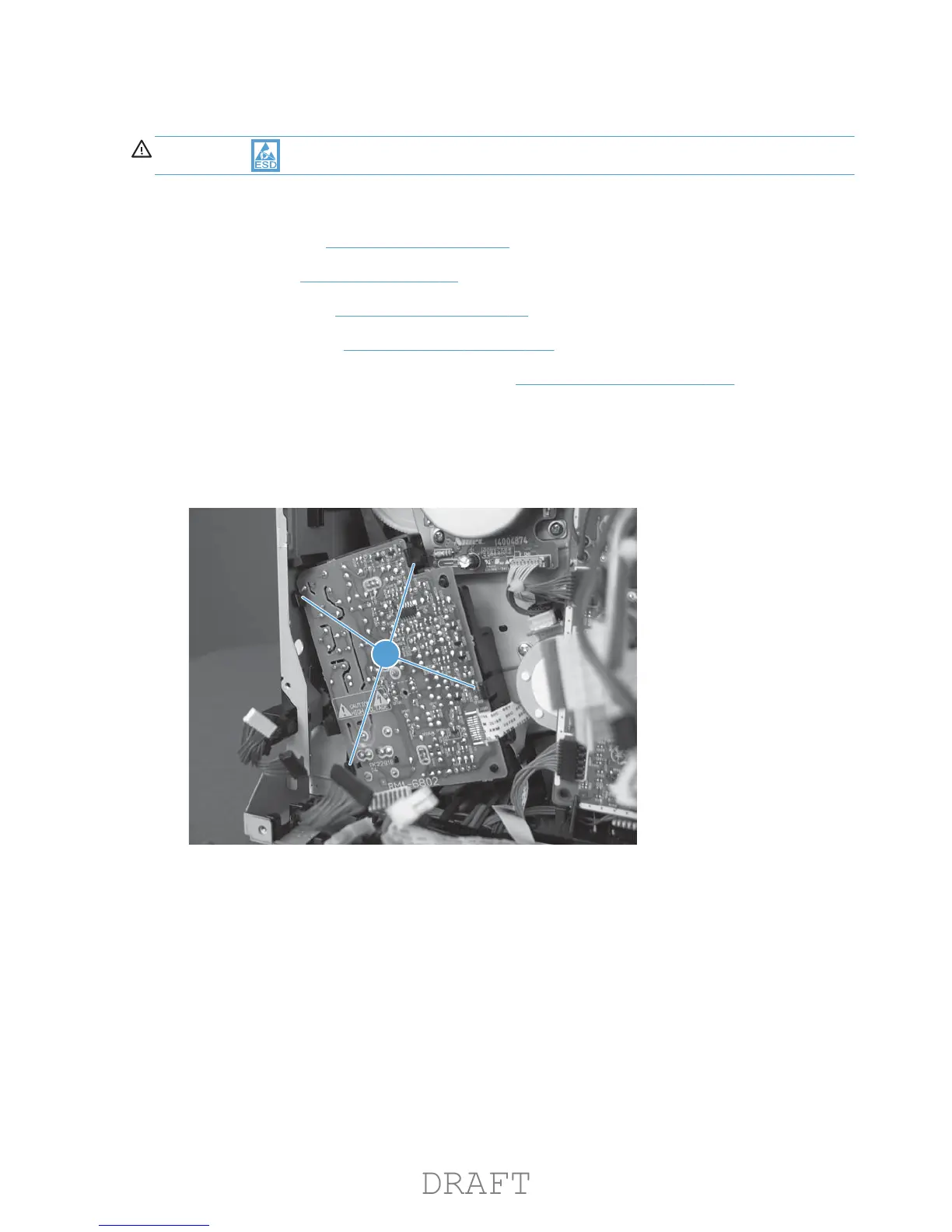

Figure 1-250 Remove the second-transfer high-voltage power supply and holder (1 of 3)
1
182 Chapter 1 Removal and replacement ENWW
