Image (developing) high-voltage power supply (HVPS). See
Image (developing) high-voltage
power supply (HVPS) on page 168.
●
First transfer high-voltage PCA. See
First-transfer high-voltage power supply on page 179.
●
Second transfer high-voltage PCA and holder. See
Second-transfer high-voltage power supply and
holder on page 182.
●
Driver PCA. See
Driver PCA on page 184.
Remove the duplex-drive assembly
1. Release one tab (callout 1), and then remove the guide (callout 2).
NOTE: Carefully feed the cable (callout 3) through the hole to remove the guide.

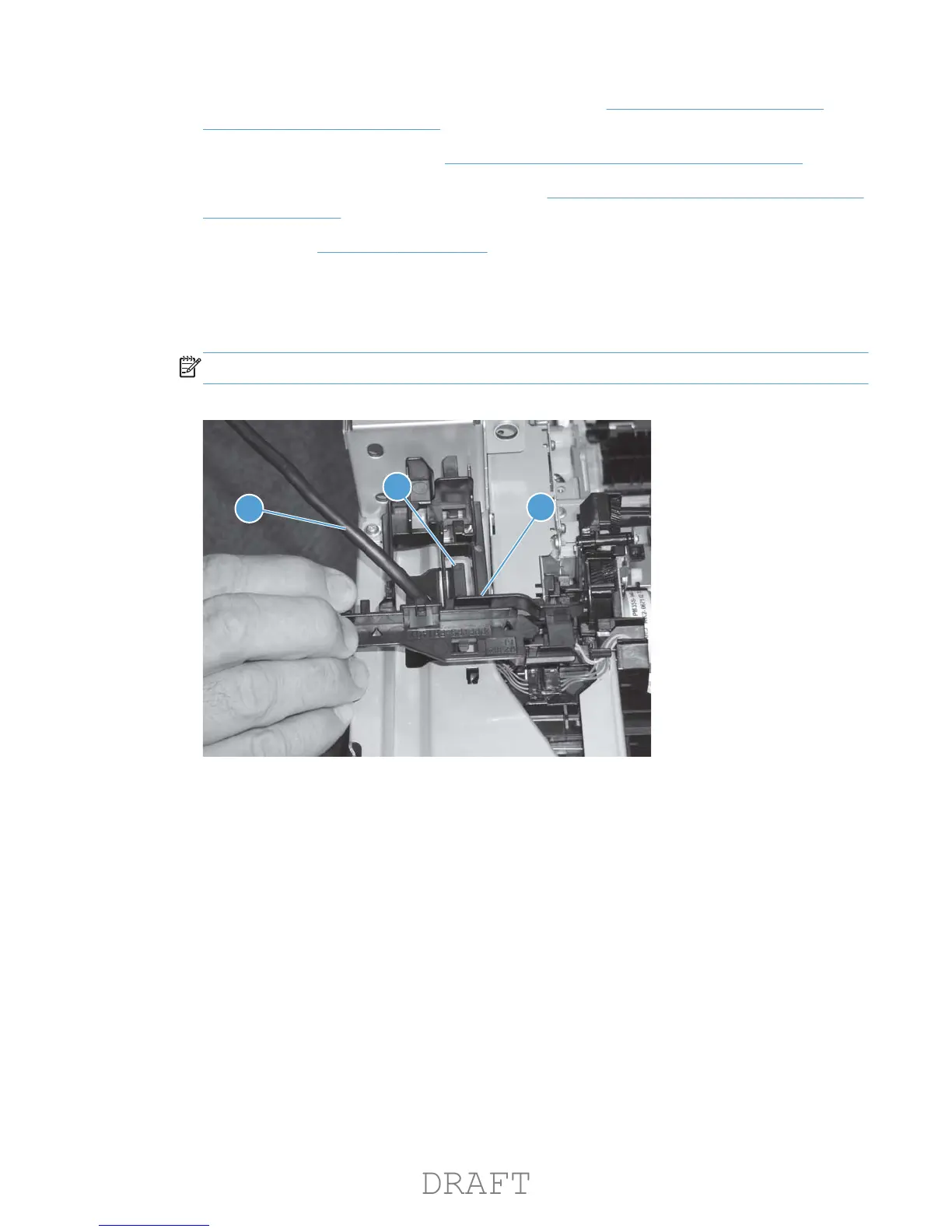

Figure 1-262 Remove the duplex-drive assembly (1 of 4)
2
3
1
ENWW
Main assemblies
191
