7. Install the remaining five mounting screws, tighten all six screws (callout 1), and then do one of the
following.
●
Installing a replacement assembly: Remove the orange spacers and spacer shipping
tape.
●
Installing the original assembly: Remove the orange spacers.

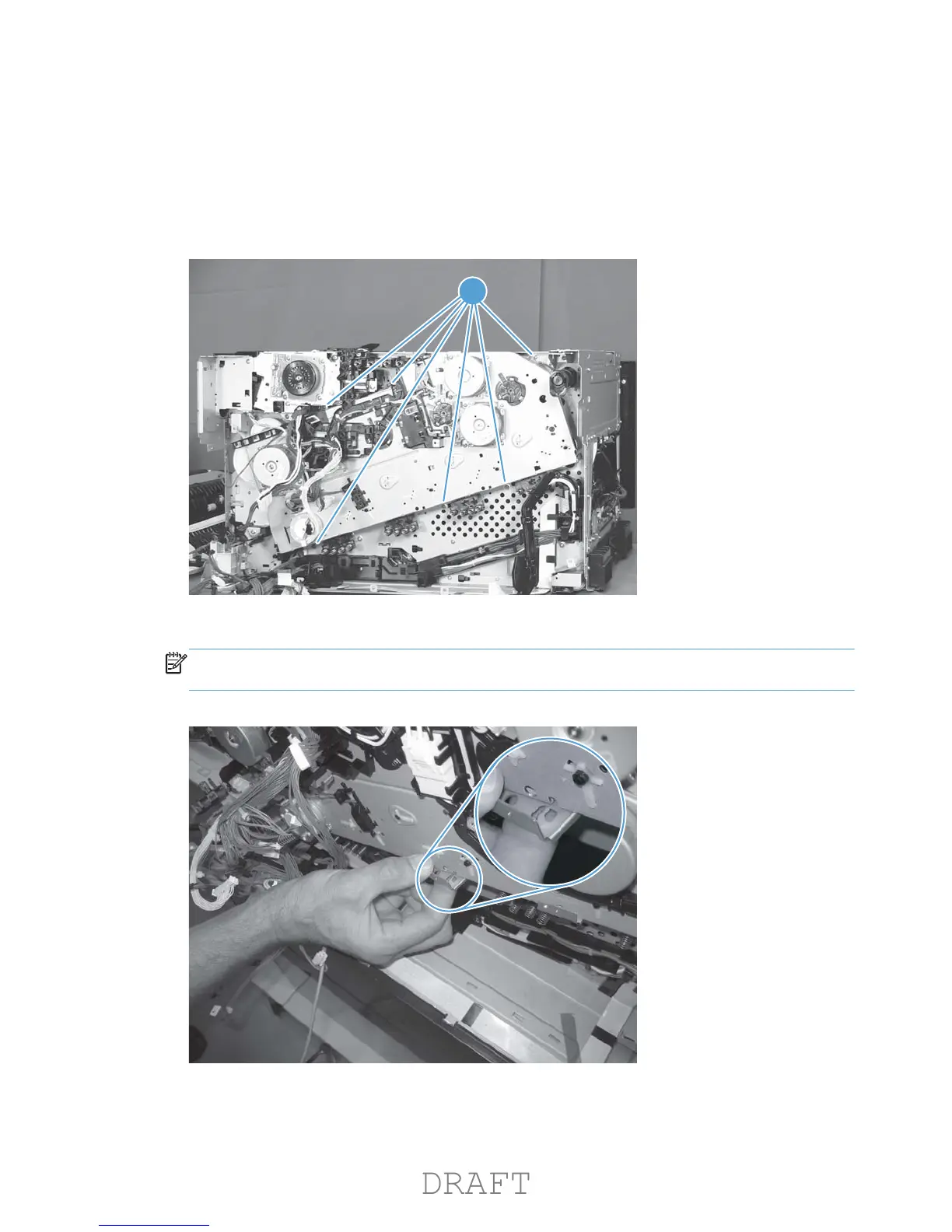

Figure 1-284 Install the main drive assembly (7 of 8)
1
8. Reinstall the two small sheet-metal brackets.
NOTE: The tab on the sheet-metal brackets must be inserted in the hole in the drive assembly
chassis as shown below.
Figure 1-285 Install the main drive assembly (8 of 8)
206 Chapter 1 Removal and replacement ENWW
