6. With the drive assembly correctly installed, verify the following:
●
Open and close the front door. The OPC drum drive gears (callout 1; two shown, four total)
must move in and out when viewed from inside the product.
●
Open and close the right door. The ITB drive gear (callout 2) must move in and out when
viewed from inside the product.

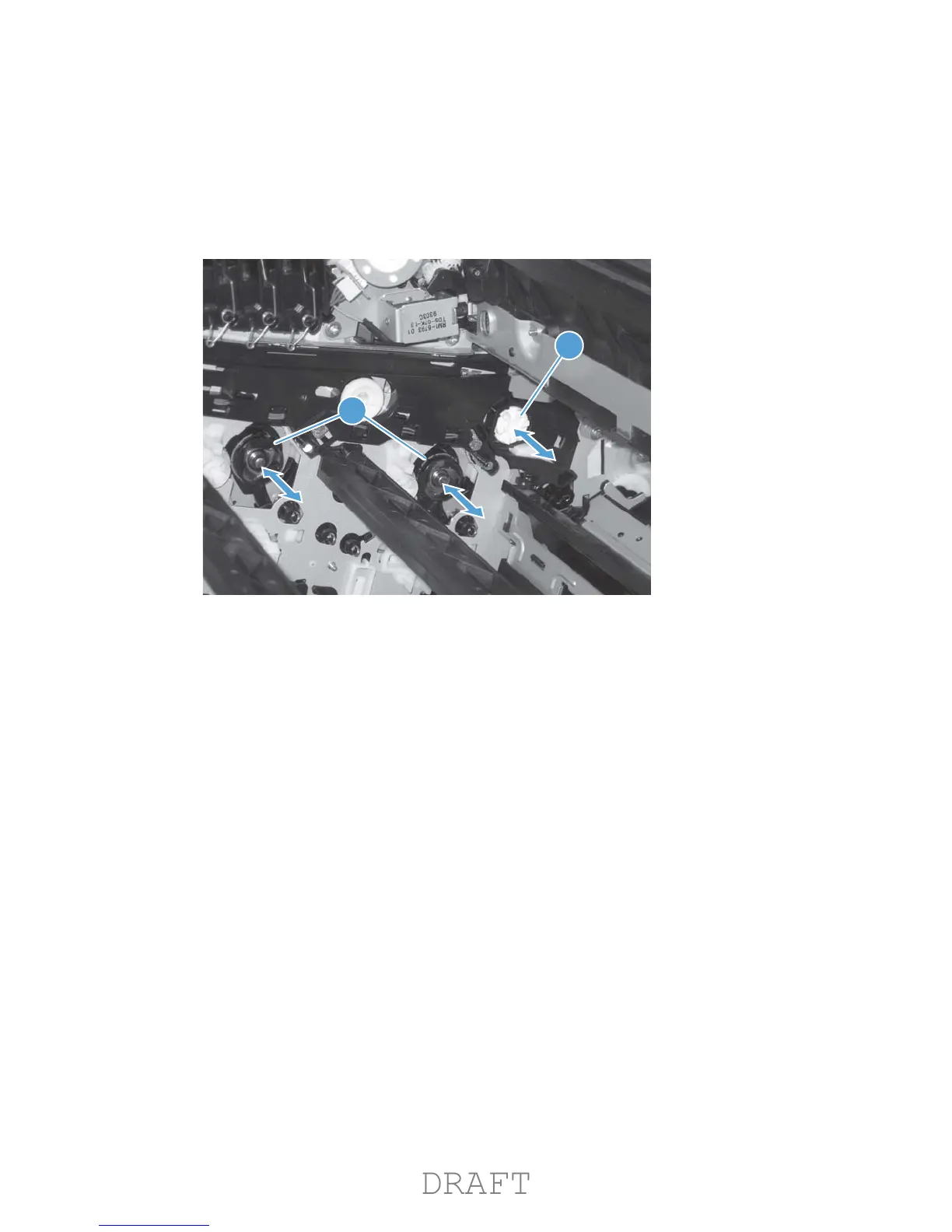

Figure 1-283 Install the main drive assembly (6 of 8)
2
1
ENWW
Main assemblies
205
