7. Remove four screws (callout 1), and then remove the fuser gear assembly (callout 2).
CAUTION: Do not remove the gear or solenoid located behind the fuser gear assembly. The
gear and solenoid are installed in specific alignment with the other components behind the
assembly. If the gear or solenoid are removed, the product will not properly function.

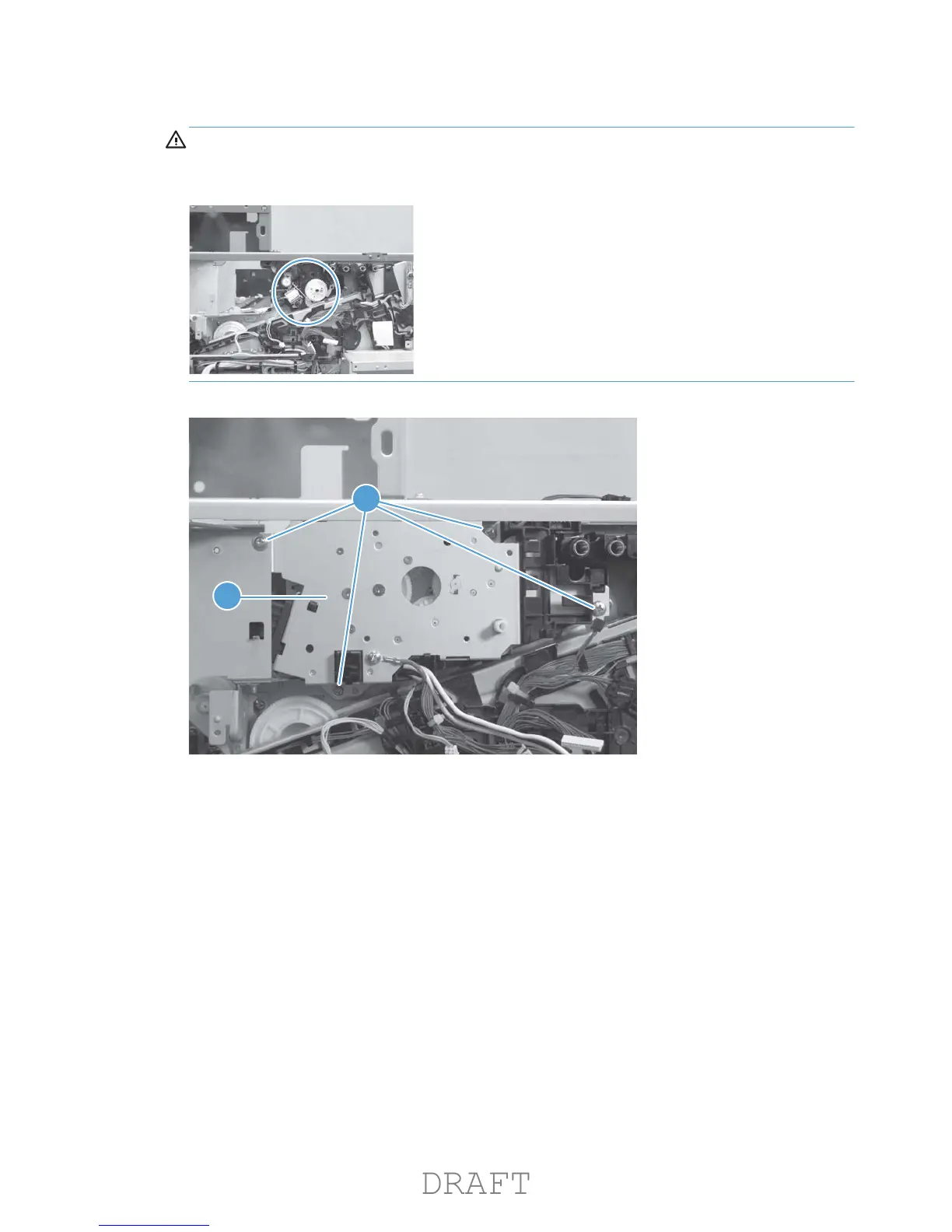

Figure 1-299 Remove the fuser gear assembly (7 of 7)
1
2
216 Chapter 1 Removal and replacement ENWW
