1x500 right door
1. Lift the product off the feeder, and then open the tray right door.
2. Release the link arm (callout 1).

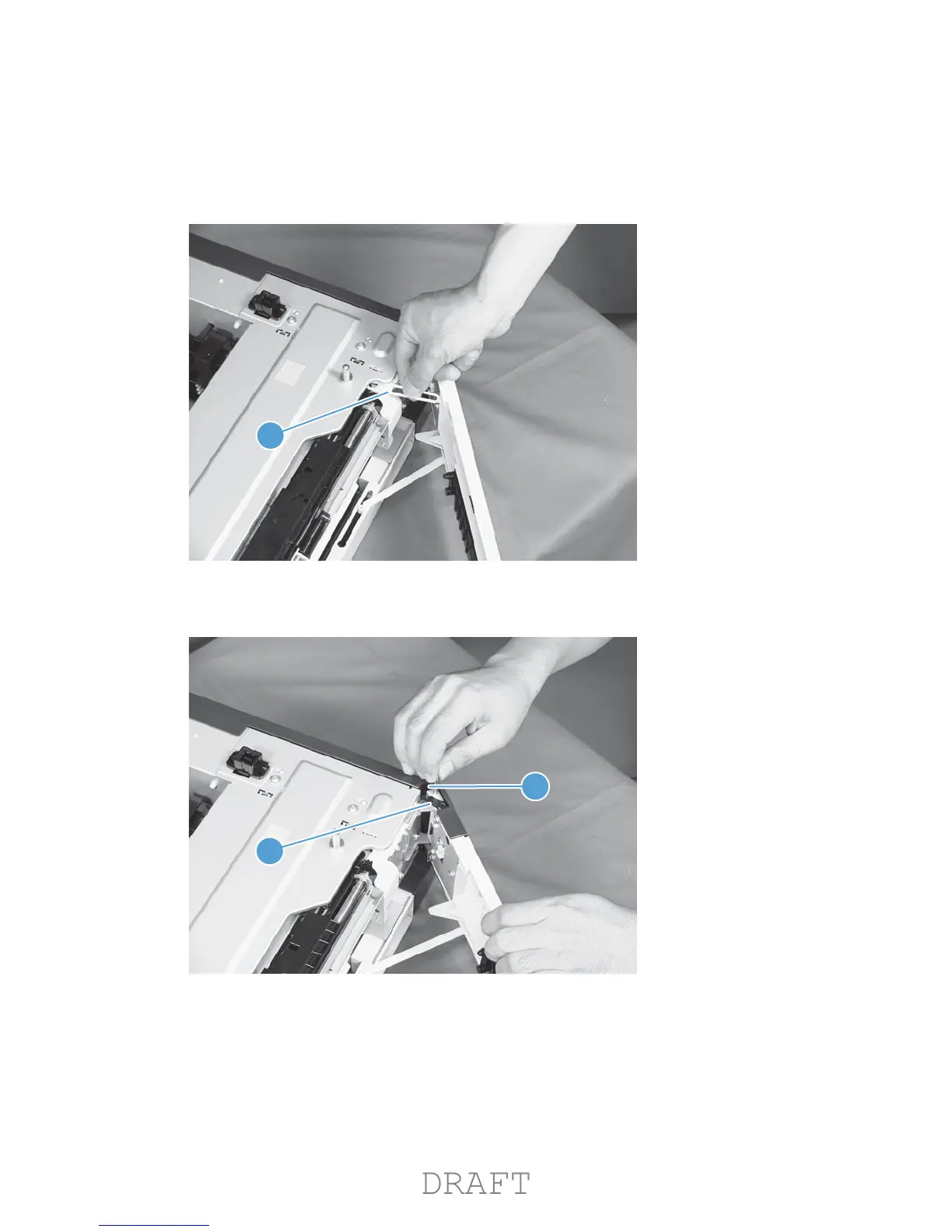

Figure 1-308 Remove the 1x500 right door (1 of 3)
1
3. Release the stopper (callout 1), and then release the shaft (callout 2).
Figure 1-309 Remove the 1x500 right door (2 of 3)
1
2
224 Chapter 1 Removal and replacement ENWW
