1x500 front-upper cover
NOTE: If the feeder is installed on the product, remove the cassette from the tray above the feeder.
Before proceeding, remove the following assemblies:
●
Right-front cover. See
1x500 right-front cover on page 222.
Remove the 1x500 front-upper cover
1. Remove the cassette from the feeder.
2. Remove two screws (callout 1), release two tabs (callout 2), and then remove the front upper cover
(callout 3).

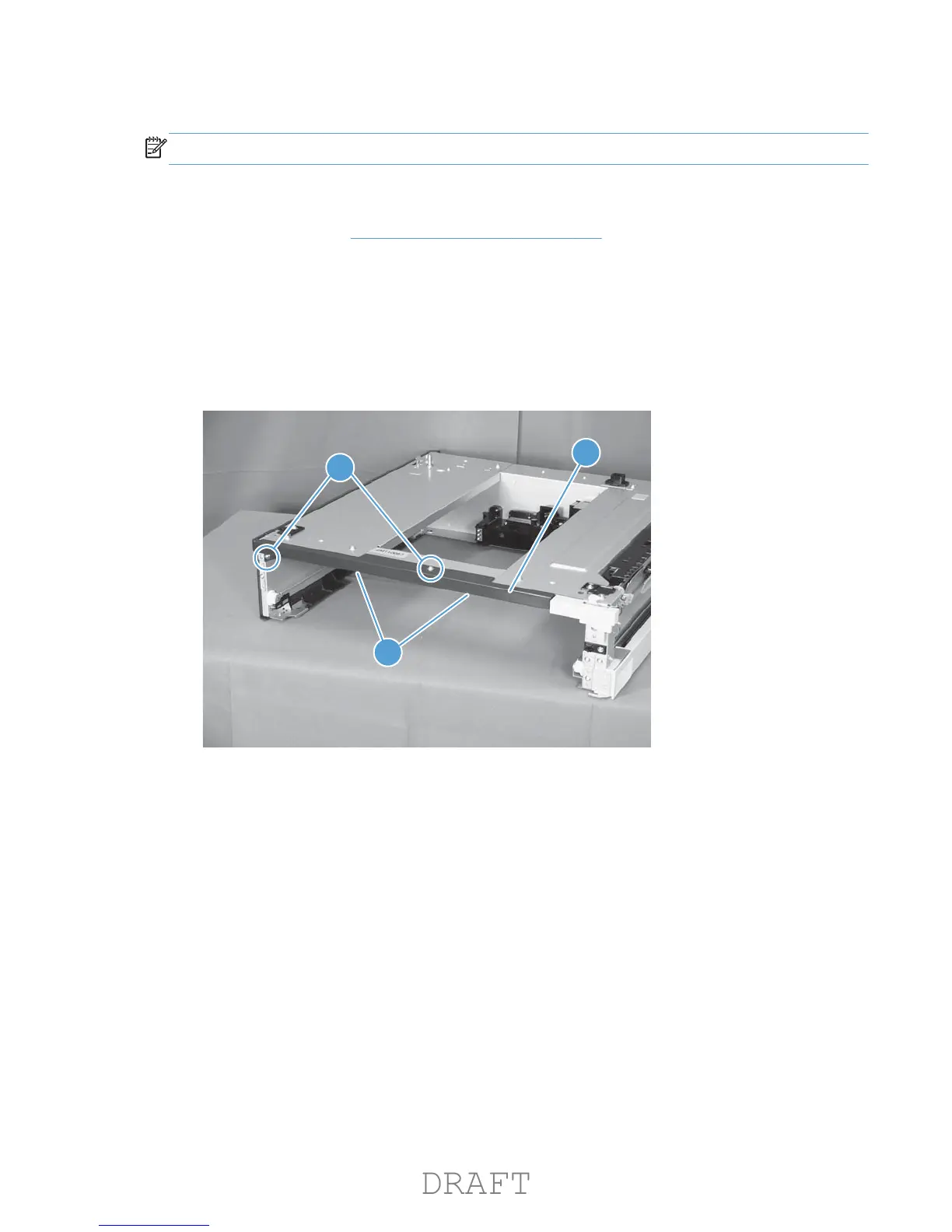

Figure 1-307 Remove the 1x500 front-upper cover
1
2
3
