1x500 right-lower cover
Before proceeding, remove the following assemblies:
●
Rear cover. See
1x500 rear cover on page 219.
●
Right door. See
1x500 right door on page 224.
Remove the 1x500 right-lower cover
1. Remove the cassette from the feeder.
2. Remove one screw (callout 1), and then slide the cover (callout 2) to the right to clear an
alignment pin at the left side of the cover.

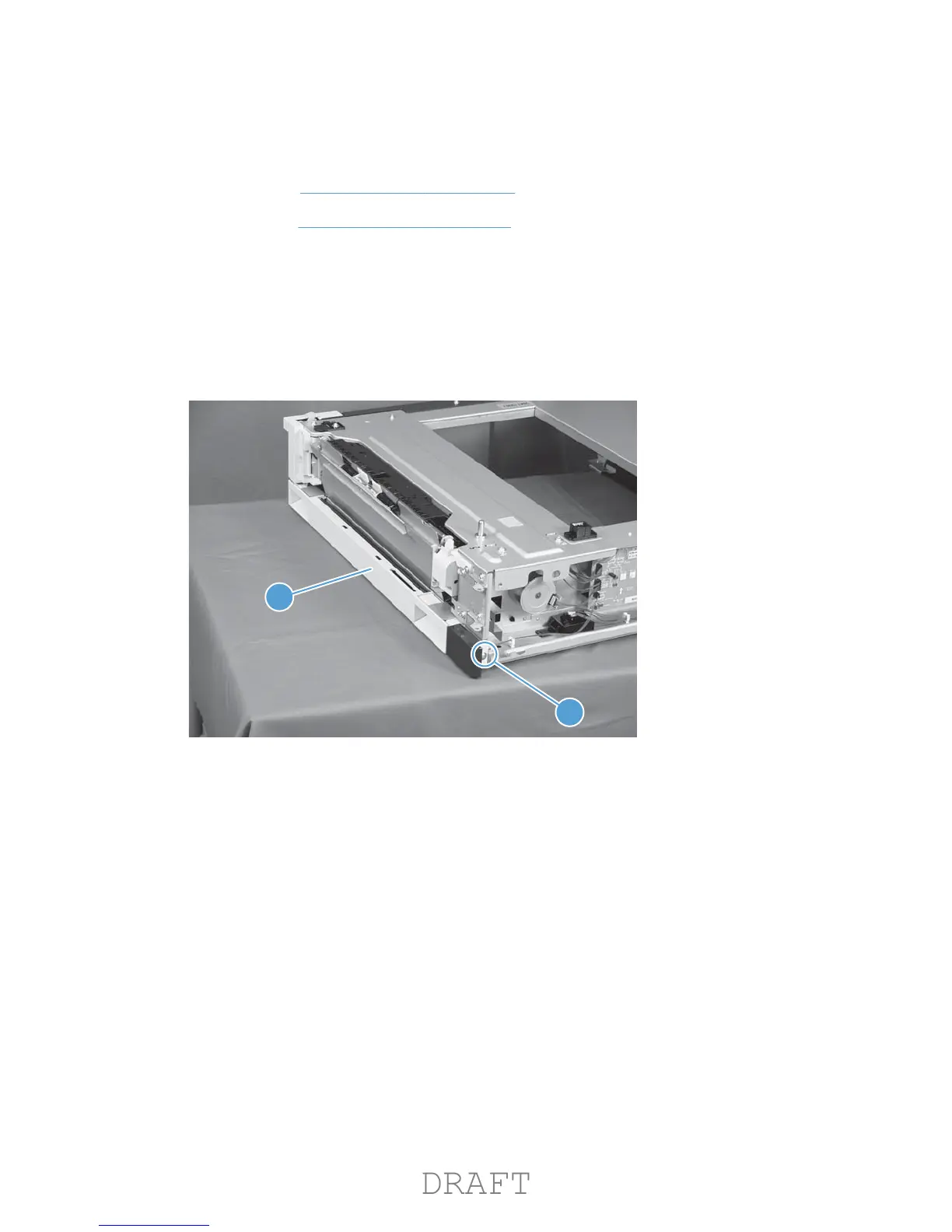

Figure 1-311 Remove the 1x500 right-lower cover
2
1
226 Chapter 1 Removal and replacement ENWW
