1x500 pickup assembly
Before proceeding, remove the following assemblies:
●
1x500 rear cover. See
1x500 rear cover on page 219.
●
1x500 right-front cover. See
1x500 right-front cover on page 222.
●
1x500 right door. See
1x500 right door on page 224.
●
1x500 right-lower cover. See
1x500 right-lower cover on page 226.
Remove the 1x500 pickup assembly
1. Disconnect three connectors (callout 1), and then remove one screw (callout 2).

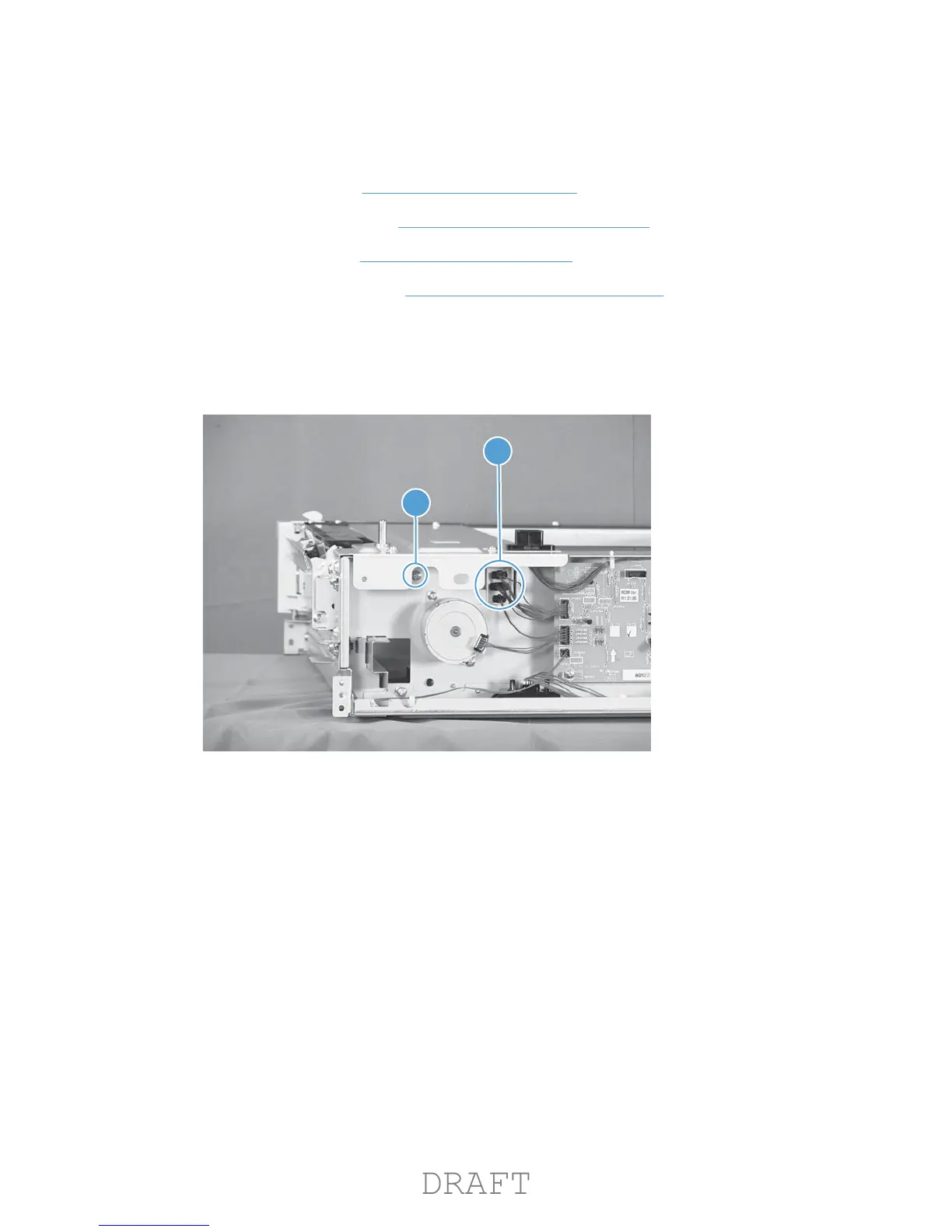

Figure 1-312 Remove the 1x500 pickup assembly (1 of 4)
1
2
ENWW
Input devices
227
