1x500 pickup motor
Before proceeding, remove the following assemblies:
●
1x500 rear cover. See
1x500 rear cover on page 219.
Remove the 1x500 pickup motor
1. Remove the cassette from the feeder.
2. Disconnect one connector (callout 1), remove two screws (callout 2), and then remove the 1x500
pickup motor (callout 3).

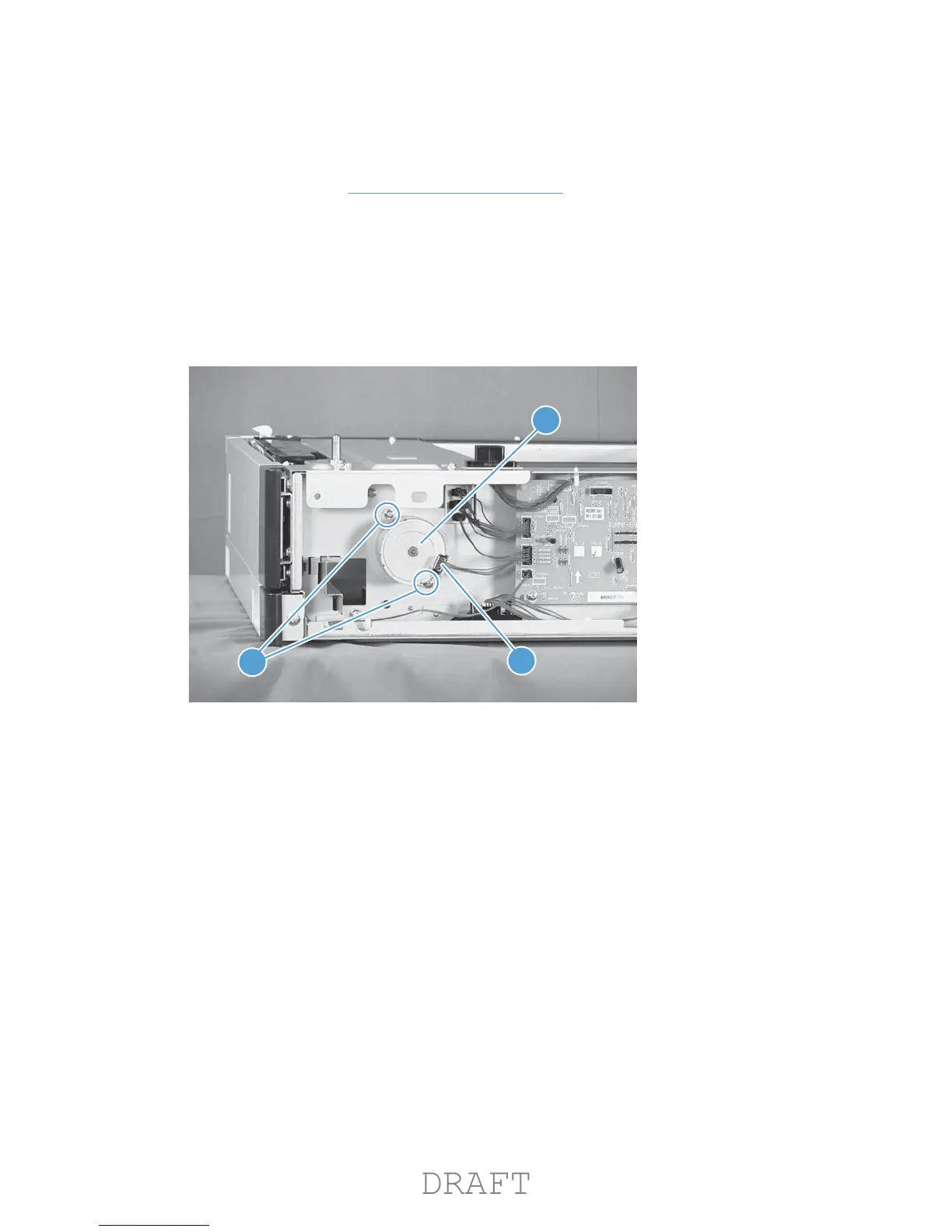

Figure 1-318 Remove the 1x500 pickup motor
2
1
3
232 Chapter 1 Removal and replacement ENWW
