1x500 driver PCA
Before proceeding, remove the following assemblies:
●
1x500 rear cover. See
1x500 rear cover on page 219.
Remove the 1x500 driver PCA
1. Remove the cassette from the feeder.
2. Disconnect seven connectors (callout 1), remove two screws (callout 2), release two tabs
(callout 3), and then remove the 1x500 driver PCA.
NOTE: One connector (callout 4) on the 1x500 driver PCA remains empty.

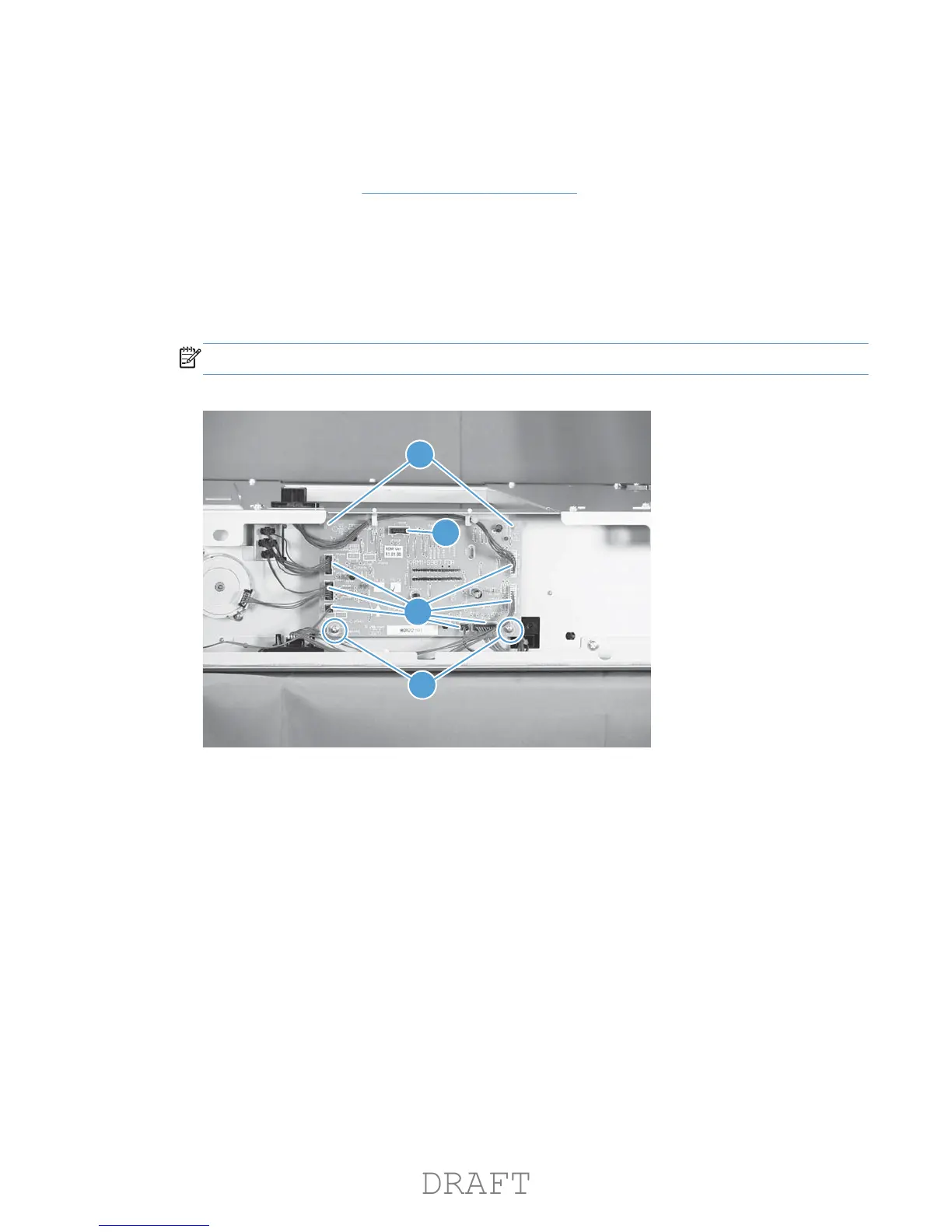

Figure 1-319 Remove the 1x500 driver PCA
3
2
1
4
