HCI right front cover
Before proceeding, remove the following assemblies:
●
HCI right tray. See
HCI right tray on page 264.
Remove the HCI right front cover
1. Open the HCI right door, release one tab (callout 1), and then remove the lock cover (callout 2).

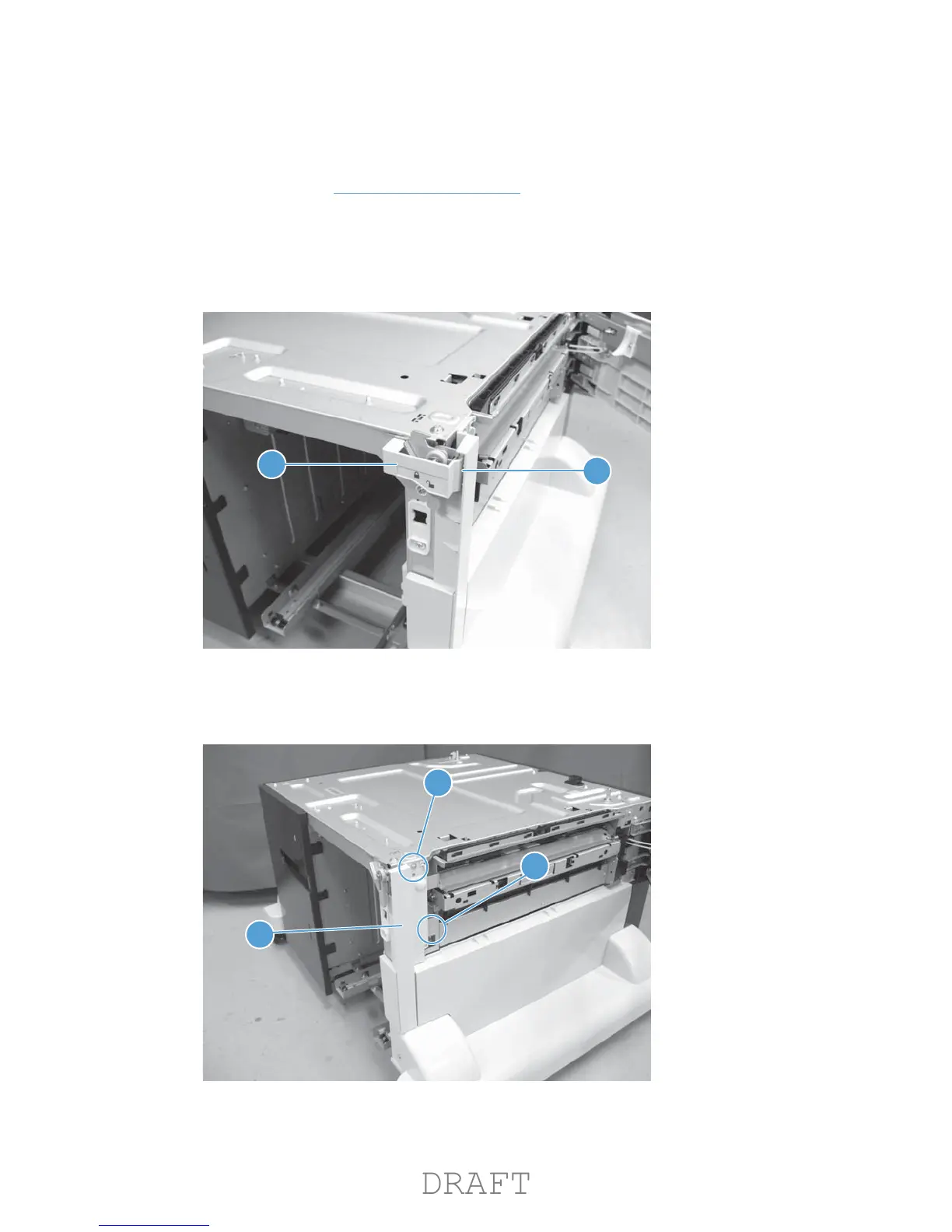

Figure 1-369 Remove the HCI right front cover (1 of 2)
1
2
2. Remove one screw (callout 1), release one tab (callout 2), and then remove the right front cover
(callout 3).
Figure 1-370 Remove the HCI right front cover (2 of 2)
3
1
2
