HP LASERJET ENTERPRISE 700 COLOR MFP M775dn - Page 312

Reinstall the HCI left tray lifter drive
When the assembly is reinstalled, make sure that the tabs (callout 1) on the assembly fit into the slots in
the chassis.

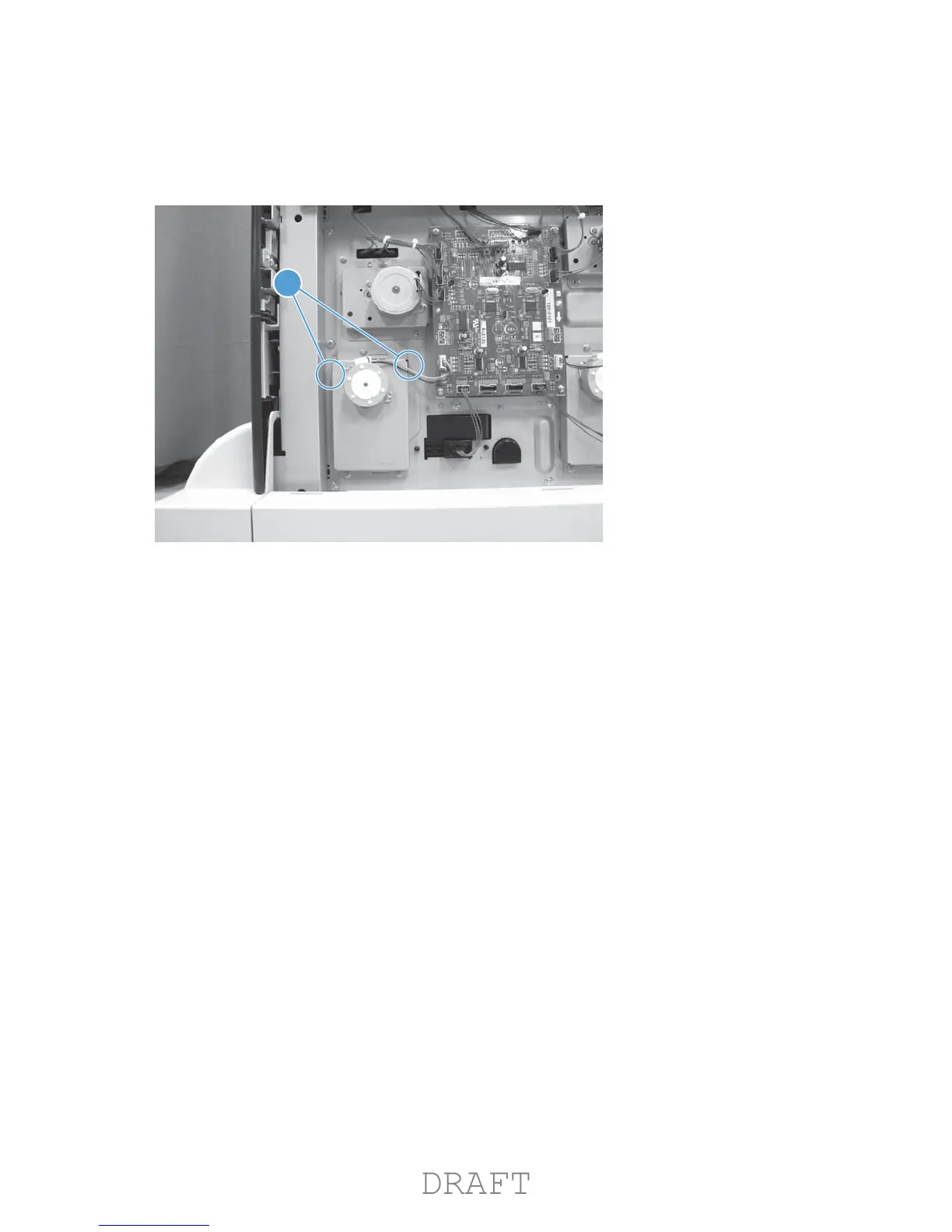

Figure 1-379 Reinstall the HCI right tray lifter drive
1
282 Chapter 1 Removal and replacement ENWW
