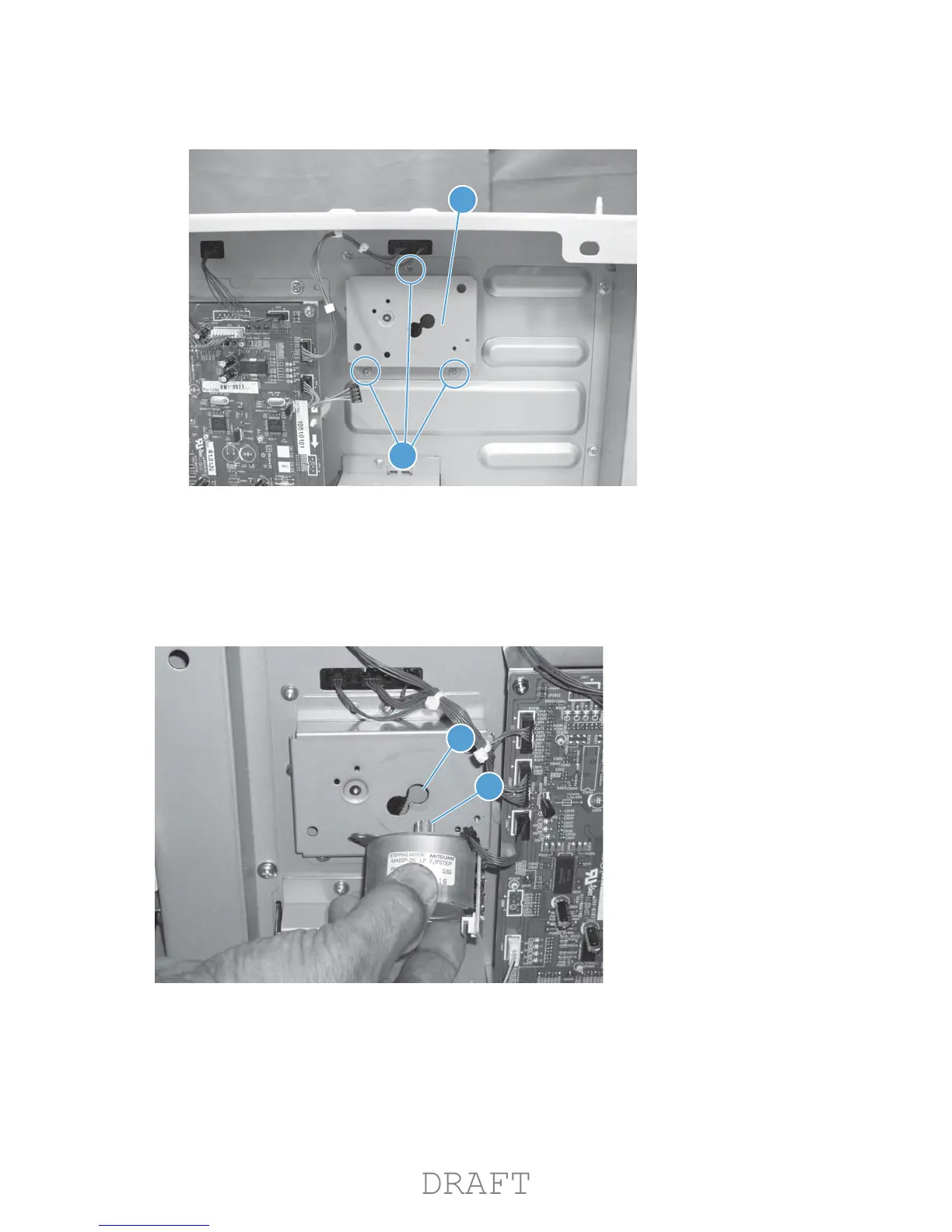

2. Remove three screws (callout 1), and then remove the left tray pickup drive (callout 2).
Figure 1-381 Remove the HCI left tray pickup drive (2 of 2)
2
1
Reinstall the HCI tray pickup drive
When the pickup drive motor is reinstalled, make sure that the motor gear (callout 1) is positioned in
the top-most hole (callout 2) of the drive assembly. You might have to move the motor back and forth to
seat the gear.
Figure 1-382 Reinstall the HCI tray pickup drive
1
2
284 Chapter 1 Removal and replacement ENWW
