HCI controller PCA
Before proceeding, remove the following assemblies:
●
HCI left tray. See
HCI left tray on page 265.
●
HCI left cover. See
HCI left cover on page 266.
●
HCI rear cover. See
HCI rear cover on page 270.
Remove the HCI controller PCA
Disconnect all of the connectors on the HCI controller PCA, remove four screws (callout 1), release two
tabs (callout 2), and then remove the HCI controller PCA (callout 3).

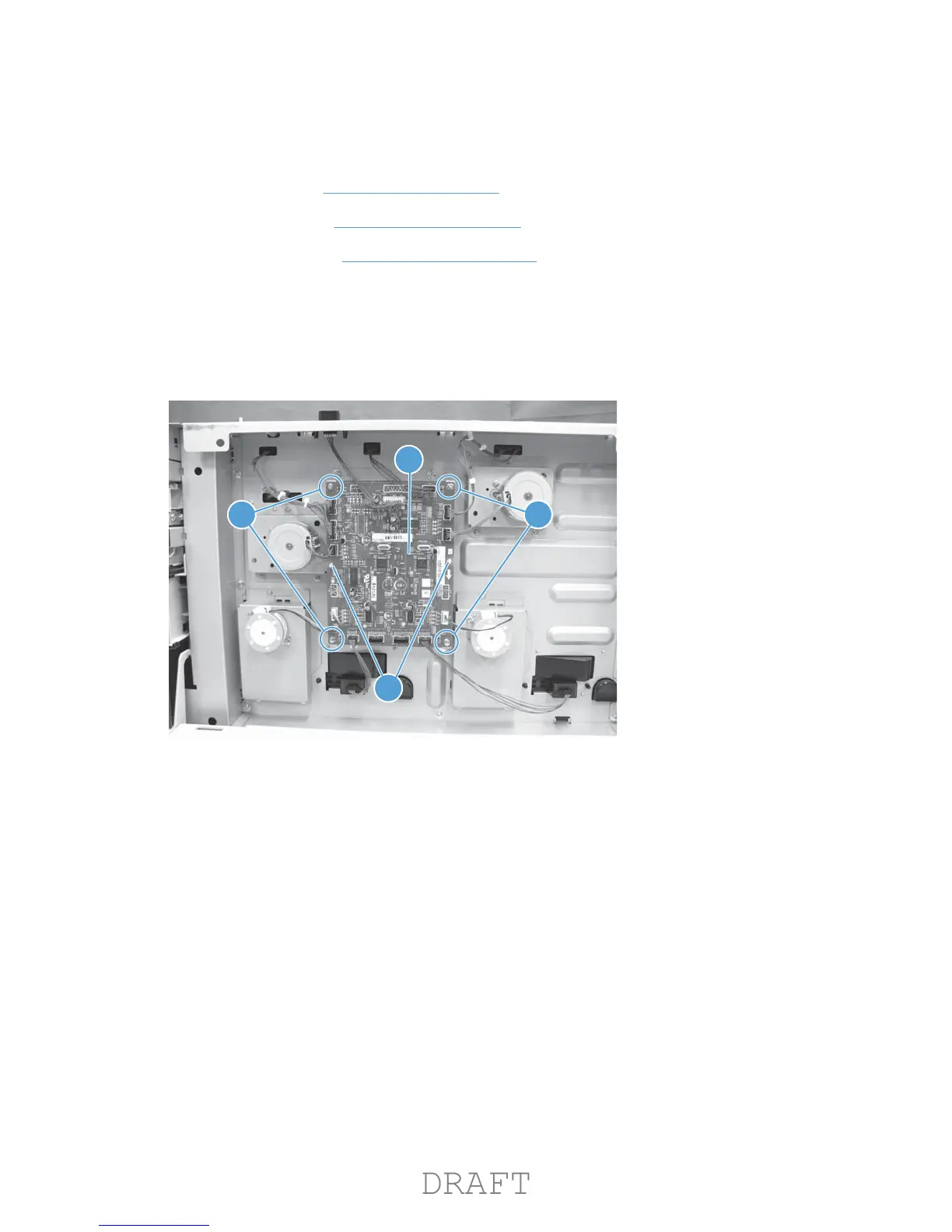

Figure 1-386 Remove the HCI controller PCA
2
3
1
1
