HP LASERJET ENTERPRISE 700 COLOR MFP M775dn - Page 318

HCI left tray automatic close assembly
Before proceeding, remove the following assemblies:
●
HCI left tray. See
HCI left tray on page 265.
●
HCI left cover. See
HCI left cover on page 266.
●
HCI rear cover. See
HCI rear cover on page 270.
Remove the HCI left tray automatic close assembly
1. Disconnect one connector (callout 1).

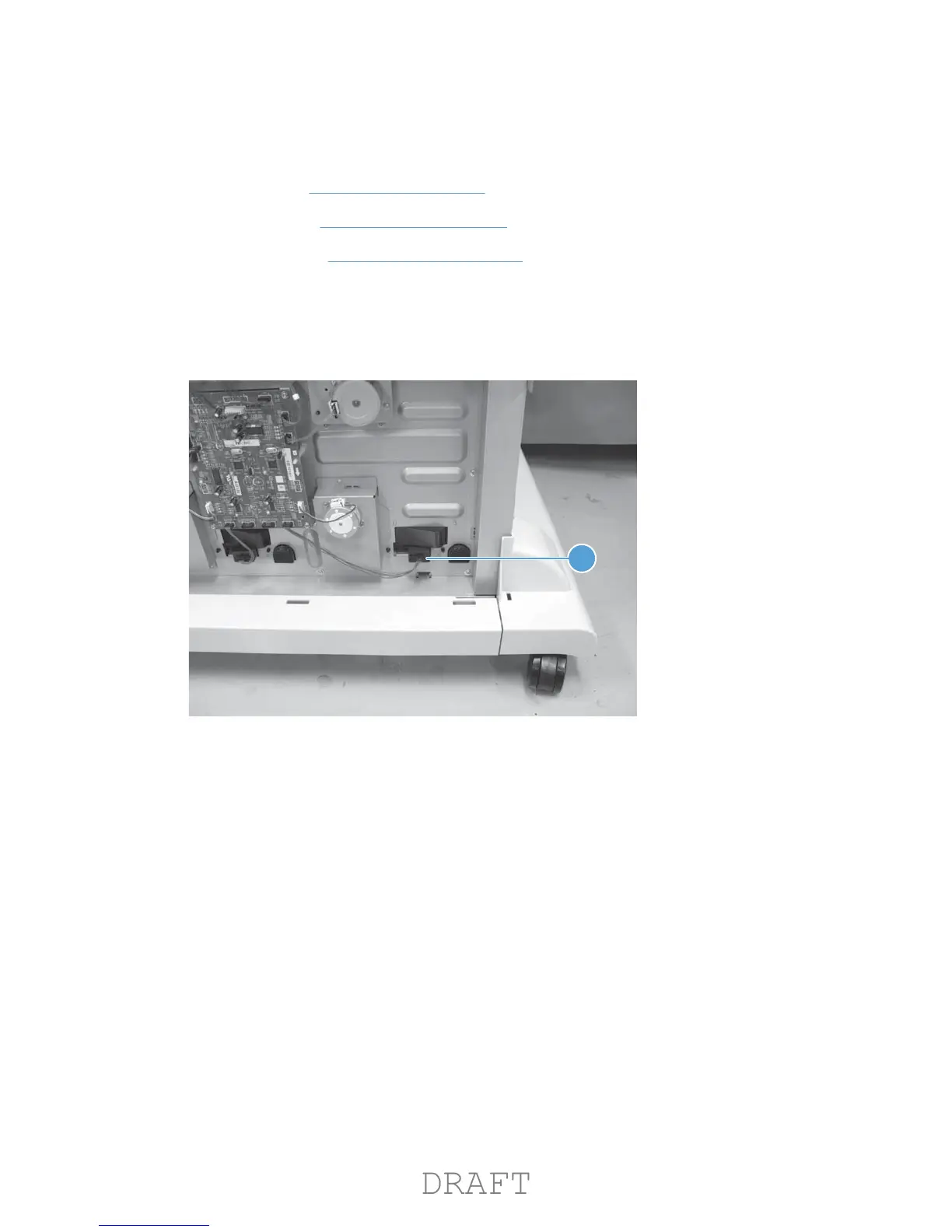

Figure 1-387 Remove the HCI left tray automatic close assembly (1 of 2)
