HCI left tray pickup assembly
Before proceeding, remove the following assemblies:
●
HCI right tray. See
HCI right tray on page 264.
●
HCI left tray. See
HCI left tray on page 265.
●
HCI left cover. See
HCI left cover on page 266.
●
HCI rear cover. See
HCI rear cover on page 270.
●
HCI left tray pickup drive. See
HCI left tray pickup drive on page 283.
Remove the HCI left tray pickup assembly
1. Disconnect three connectors (callout 1) and remove one screw (callout 2).

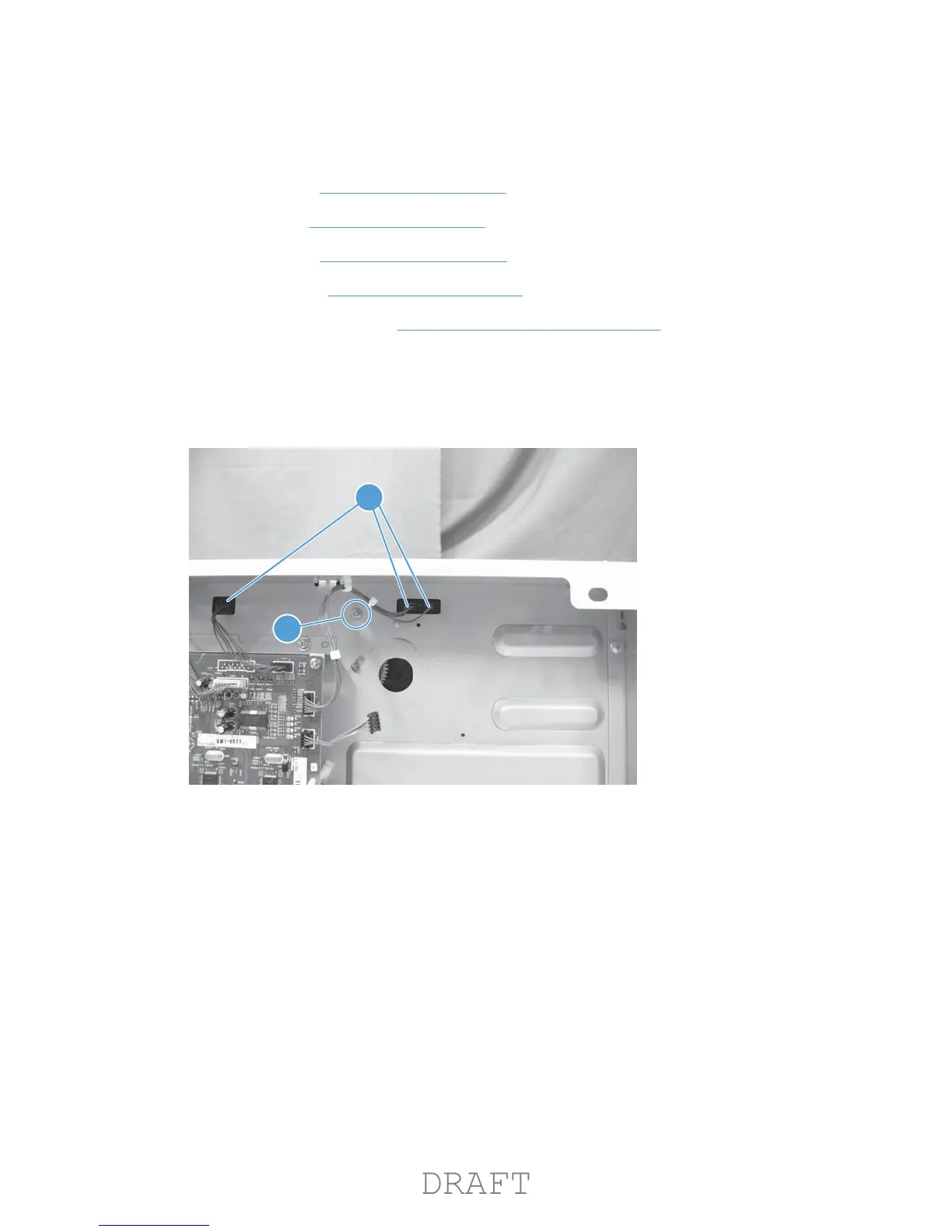

Figure 1-391 Remove the HCI left tray pickup assembly (1 of 2)
2
1
