3. Remove any left over foam reflector adhesive material from the document feeder.
Figure 1-24 Remove the document feeder foam reflector (3 of 3)
Install a replacement document feeder foam reflector
1. Position the replacement foam reflector on the scanner glass.
NOTE: One long edge of the foam backing does not have adhesive tape (callout 1). Make sure
that this edge is closest to the hinge side of the glass when positioning the foam on the glass.

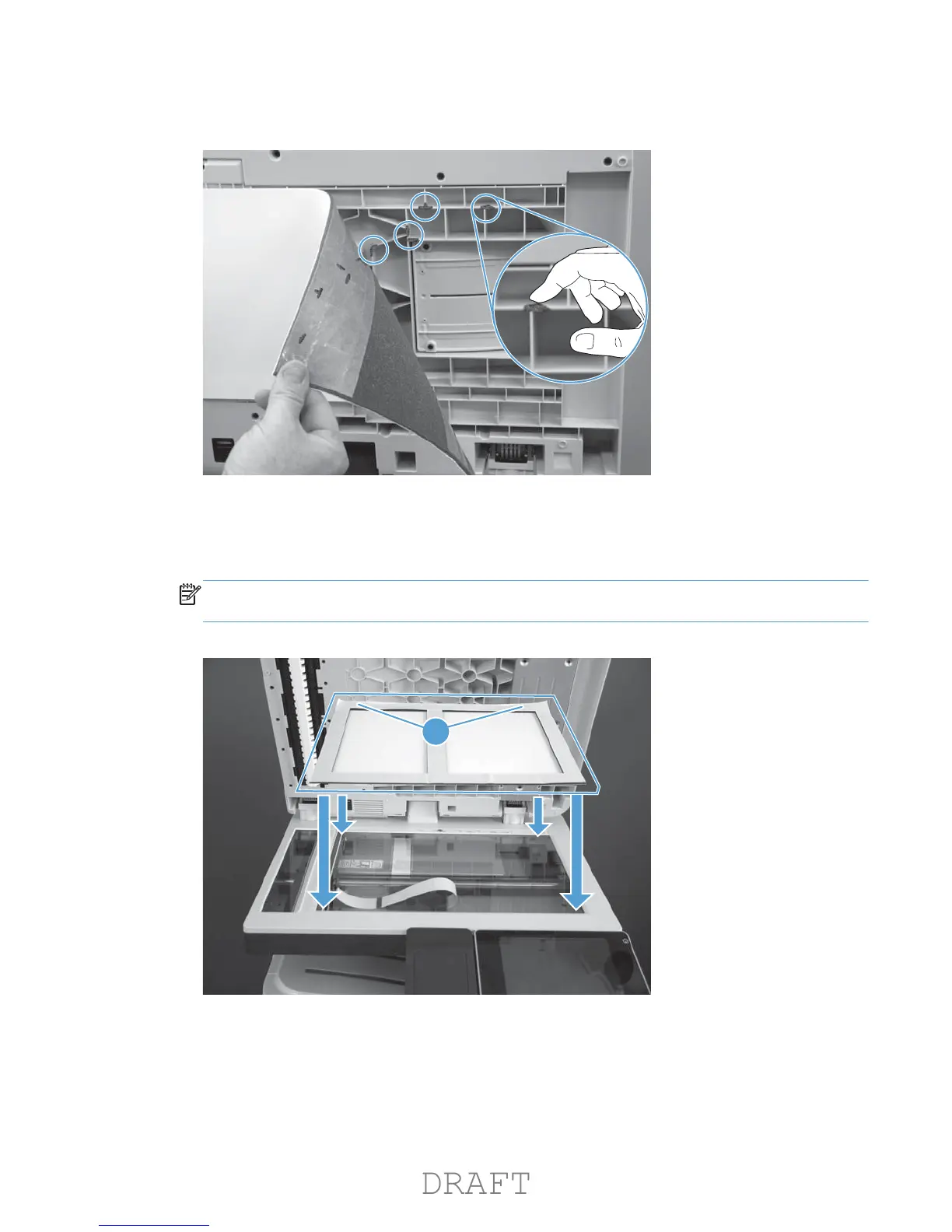

Figure 1-25 Install a replacement document feeder foam reflector (1 of 8)
1
ENWW
Document feeder foam reflector
17
