2. Carefully remove the protective backing from the adhesive portion of the foam reflector.
CAUTION: Do not touch the exposed adhesive.

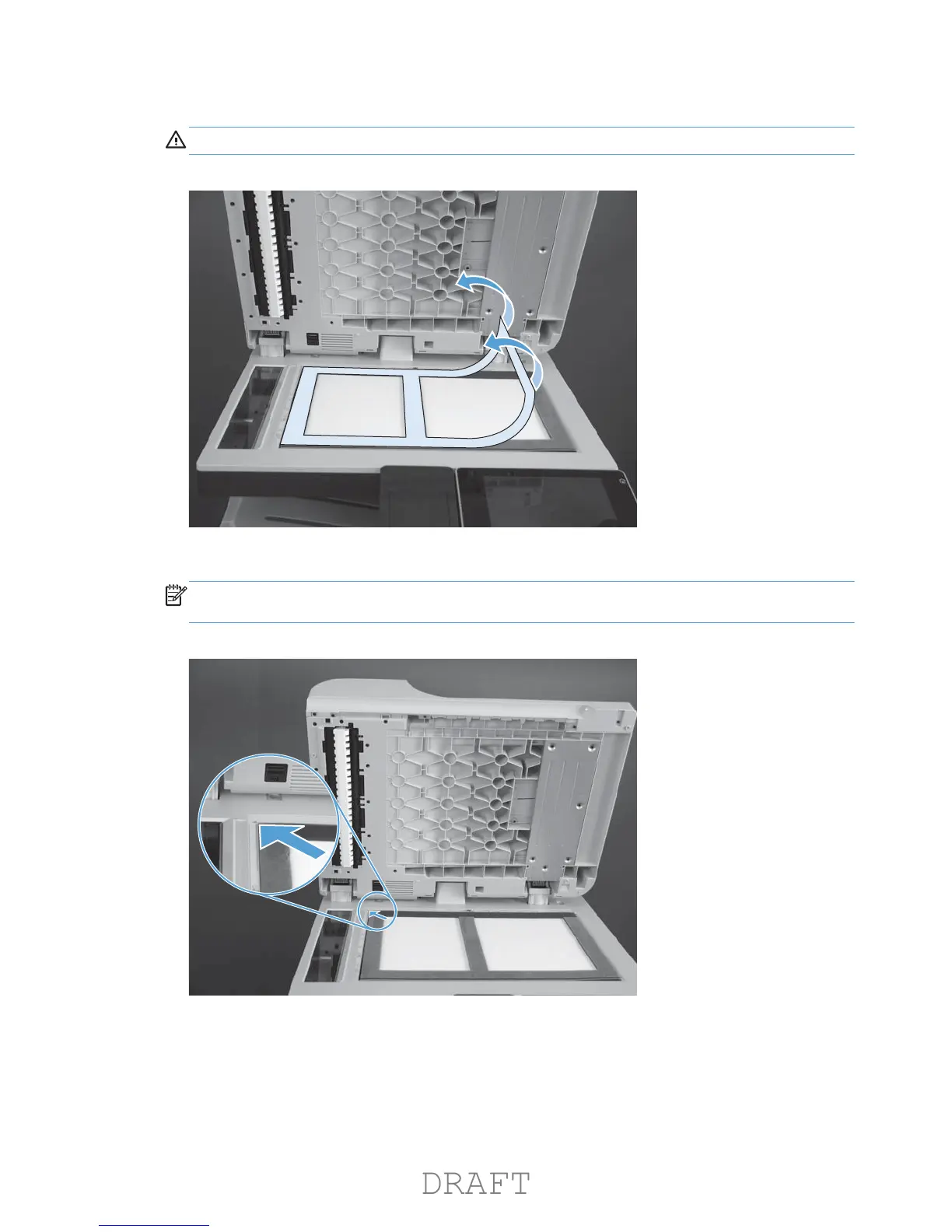

Figure 1-26 Install a replacement document feeder foam reflector (2 of 8)
3. Make sure that the foam reflector is aligned with the upper-left corner of the scanner glass.
NOTE: One long edge of the foam backing does not have adhesive tape. Make sure that this
edge is closest to the hinge side of the glass when positioning the foam on the glass.
Figure 1-27 Install a replacement document feeder foam reflector (3 of 8)
18 Chapter 1 Removal and replacement ENWW
