Document feeder separation pad
NOTE: Always replace the document feeder separation pad and pickup and feed roller assemblies at
the same time.
1. Open the document feeder cover and locate the document feeder separation pad.

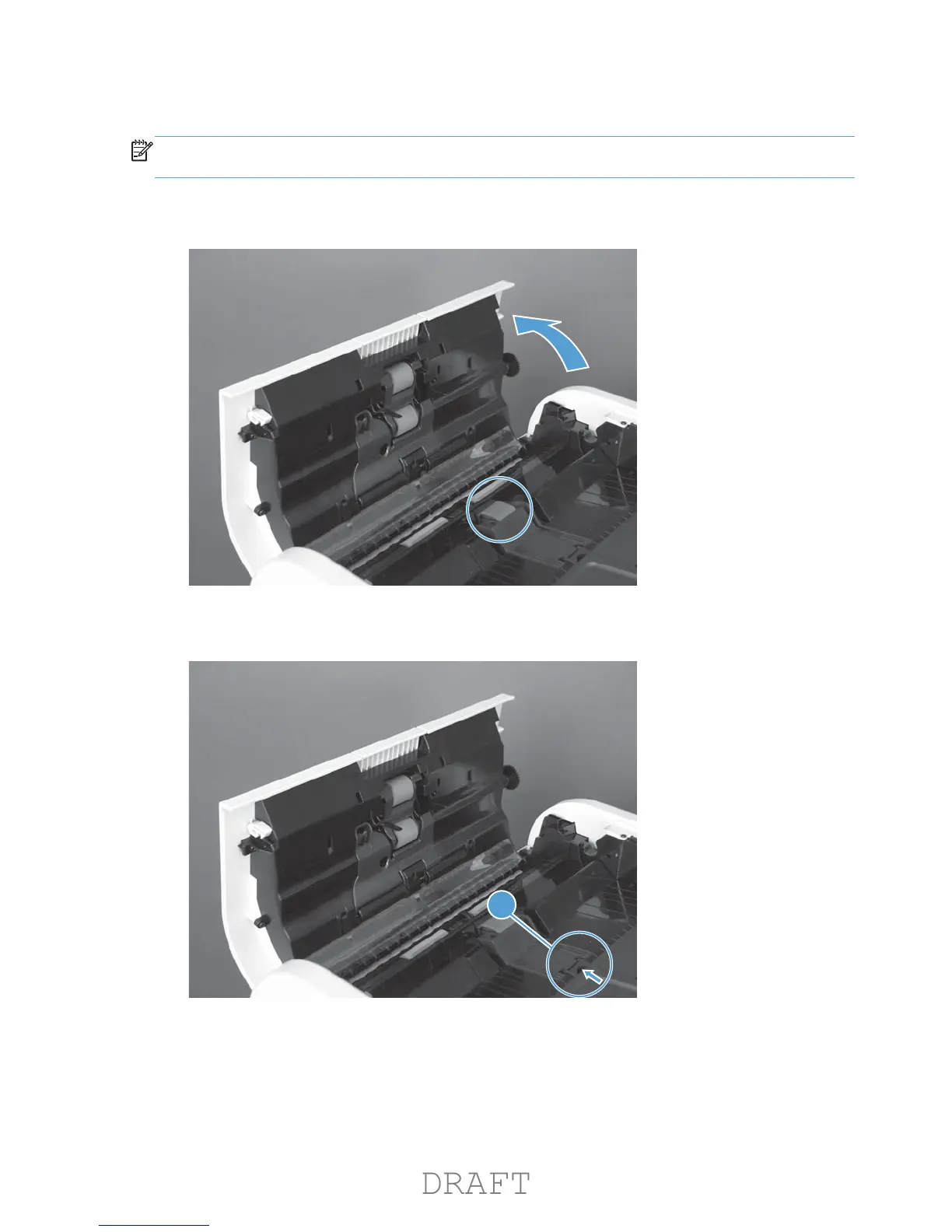

Figure 1-47 Remove the document feeder separation pad (1 of 3)
2. Press the tab (callout 1) toward the separation pad.
Figure 1-48 Remove the document feeder separation pad (2 of 3)
1
32 Chapter 1 Removal and replacement ENWW
