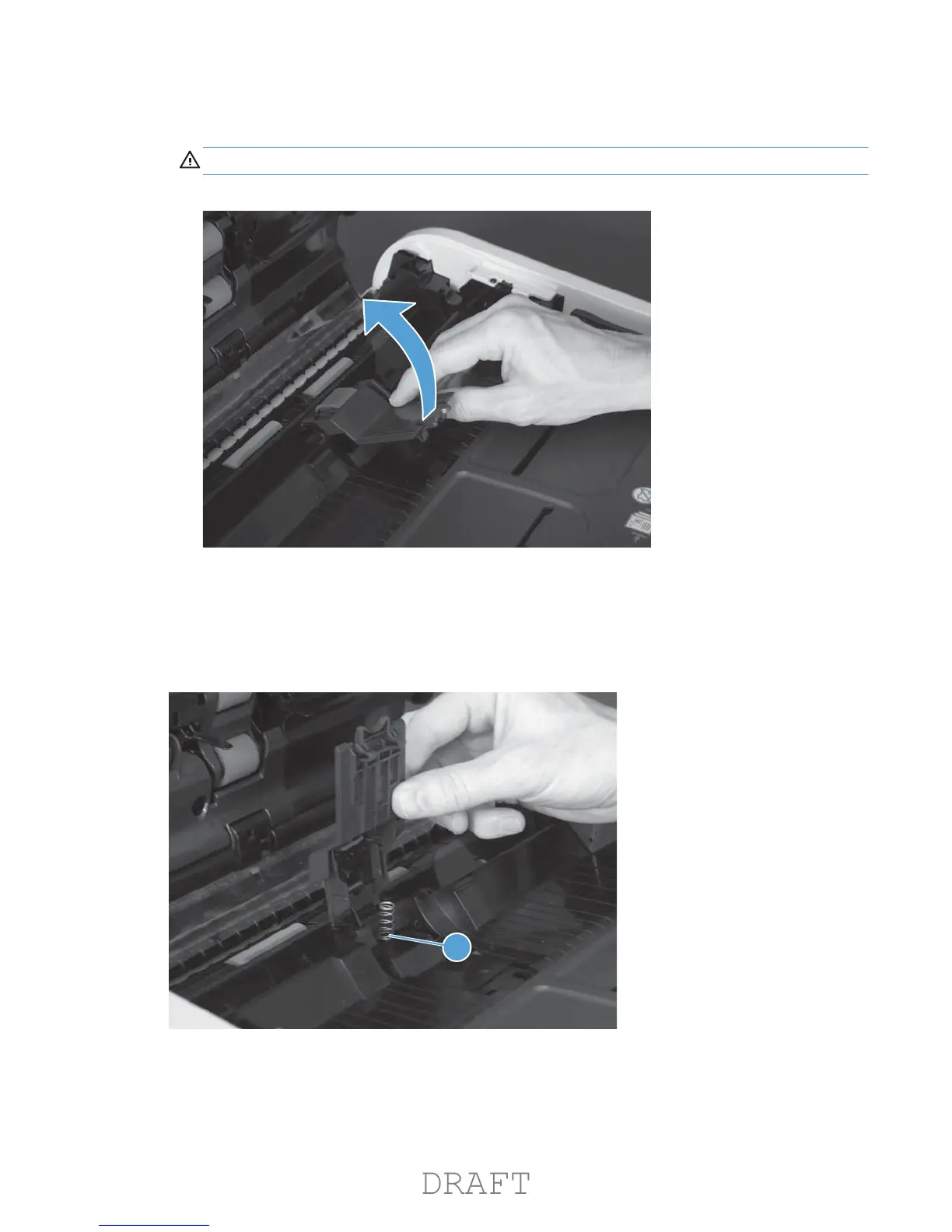

3. Rotate the separation pad assembly up and away from the document feeder, and then remove the
assembly.
CAUTION: The spring underneath the separation pad is not captive. Do not lose the spring.
Figure 1-49 Remove the document feeder separation pad (3 of 3)
Reinstall the document feeder separation pad
When the replacement separation pad assembly is installed, make sure that the spring is seated on the
spring pedestal (callout 1) under the separation pad.
Figure 1-50 Reinstall the document feeder separation pad
1
ENWW
Pickup, feed, and separation (rollers and pads)
33
