Document feeder
Before proceeding, remove the following assemblies:
●
Scanner rear and FFC bezel cover. See
Scanner rear and FFC bezel cover on page 66.
Remove the document feeder assembly
1. Disconnect two connectors (callout 1) and remove one ground wire screw (callout 2).

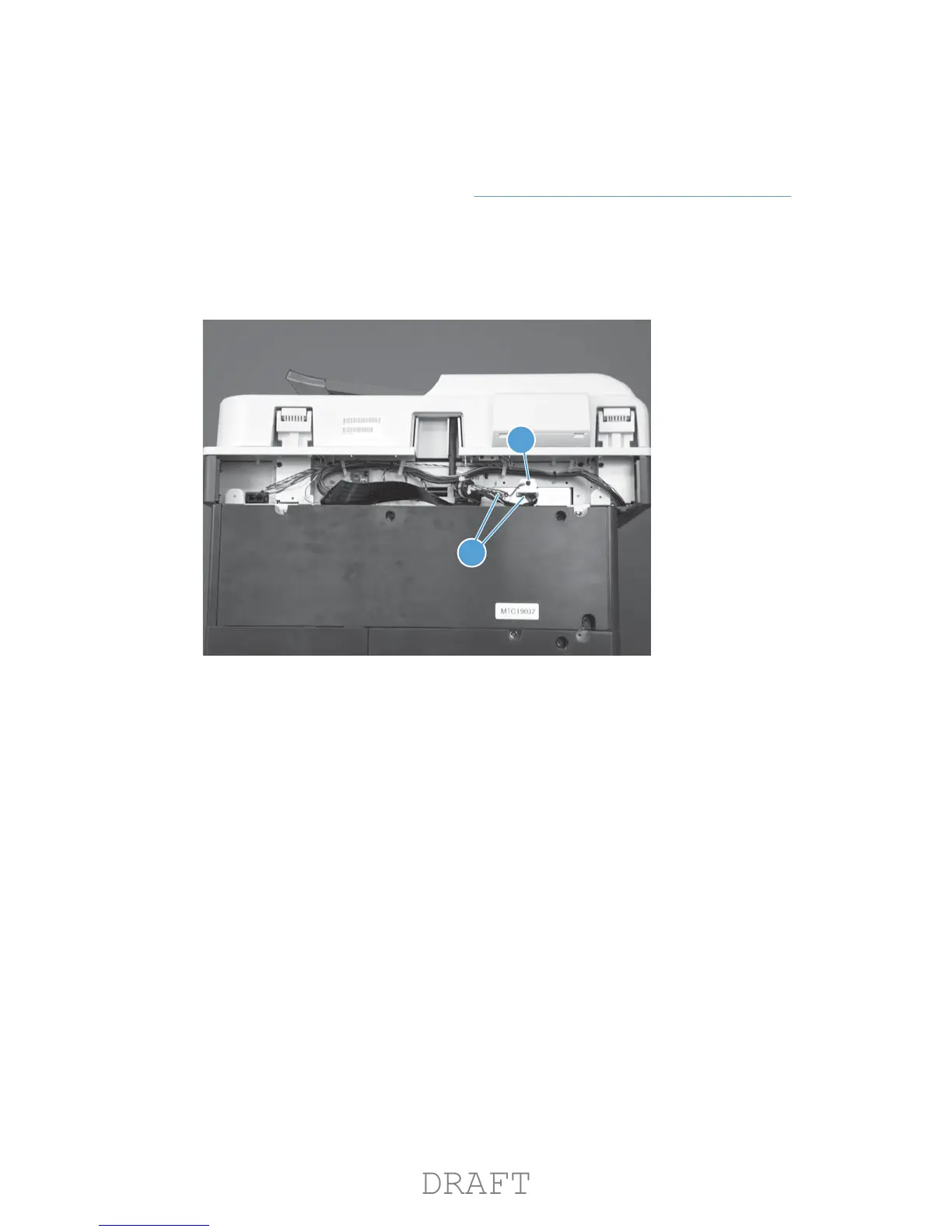

Figure 1-103 Remove the document feeder (1 of 4)
2
1
ENWW
Covers, doors, and whole unit replacement
69
