5. Remove one screw (2), and then lift the solenoid off the printer chassis.

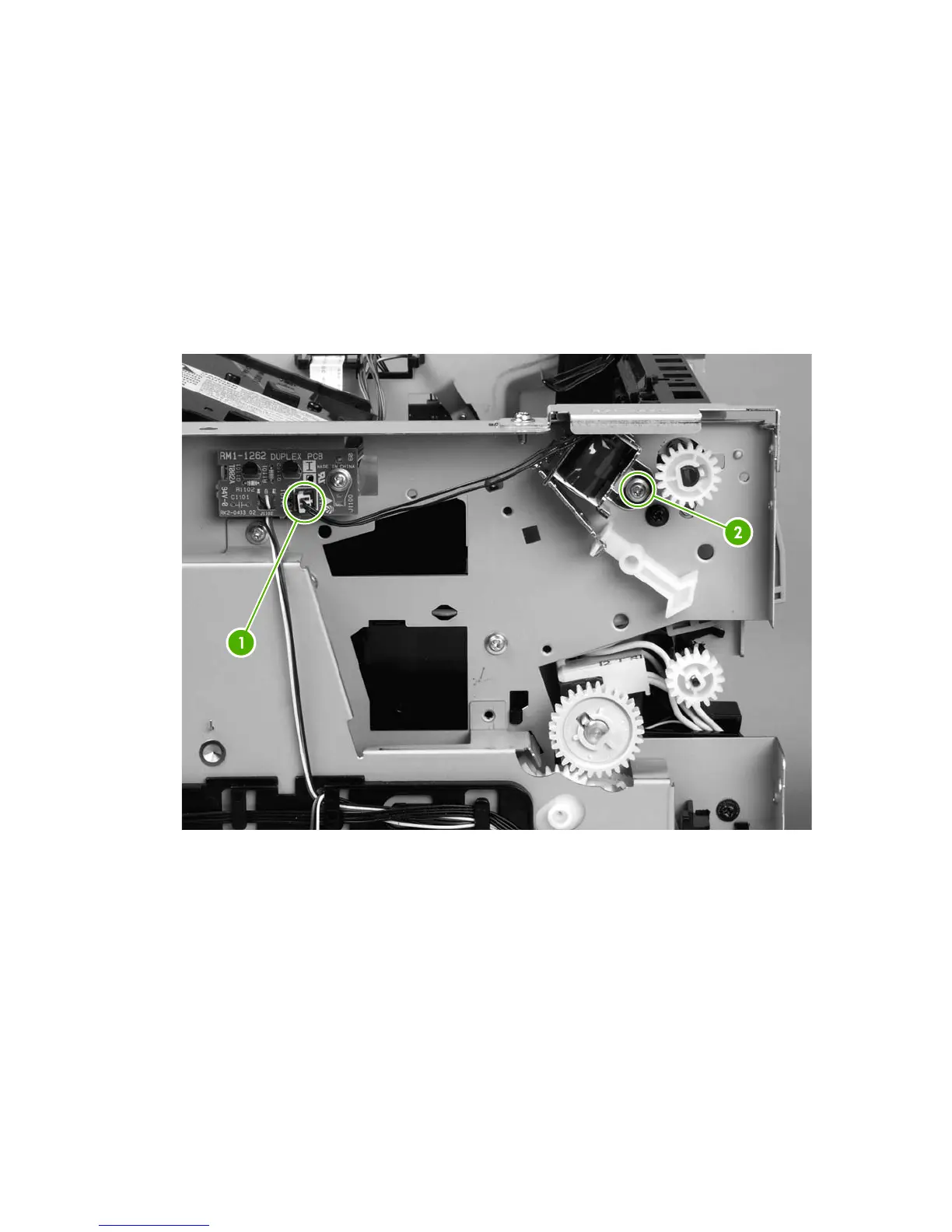

Figure 6-22 Removing the duplex solenoid
Duplex solenoid (HP LaserJet P2015d, P2015dn, and P2015x
printers only)
1. Remove all covers.
2. Remove the fan.
3. Remove the duplex-drive gears.
4. Disconnect one cable (1) at the duplex-drive PCA.
