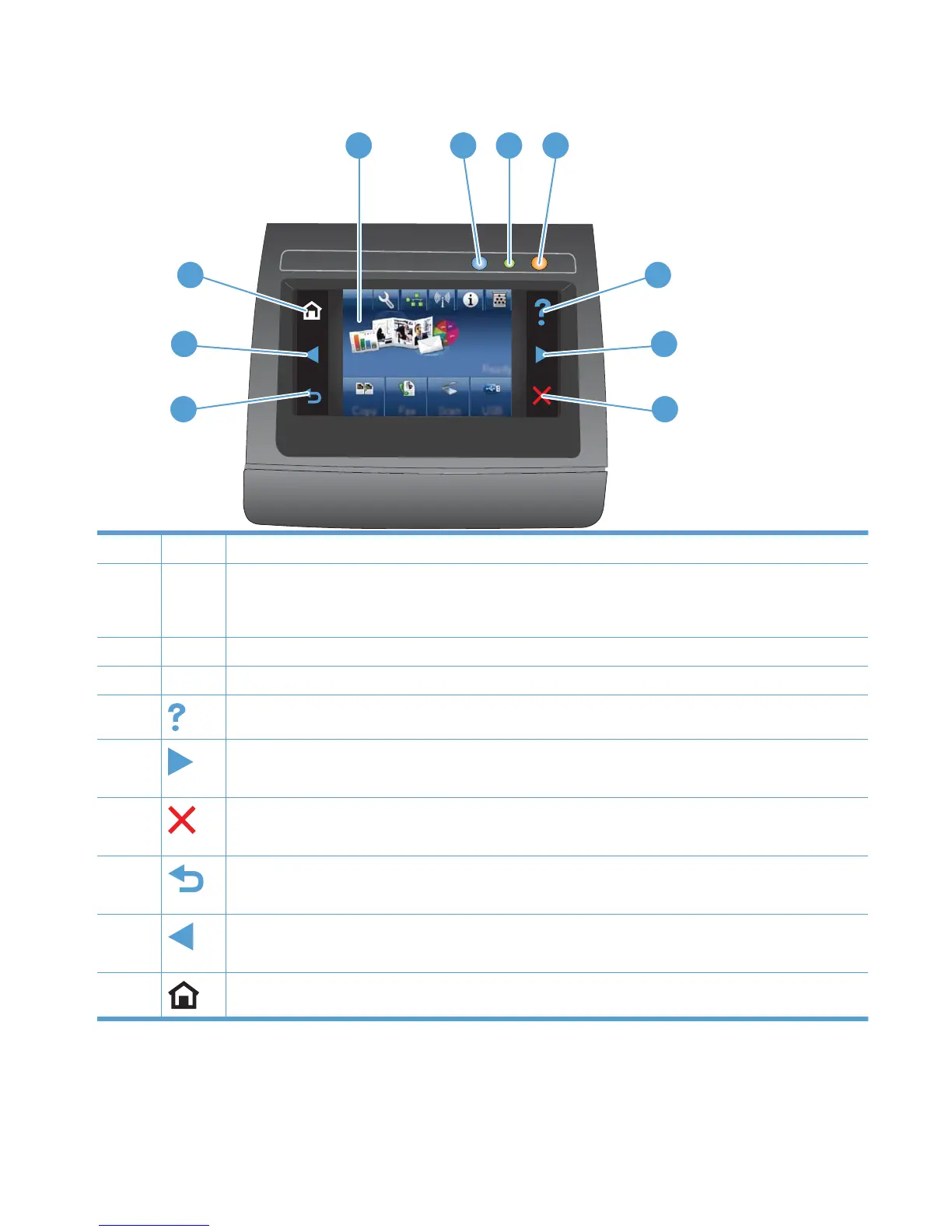

Control panel layout
1 2 3 4
5
6
7
10
9
8
1 Touch screen display
2 Wireless light: indicates the wireless network is enabled. The light blinks while the product is establishing a connection
to the wireless network. When connected, the light stops blinking and stays lit.
NOTE: Wireless models only
3 Ready light: indicates the product is ready
4 Attention light: indicates a problem with the product
5 Help button and light: provides access to the control panel help system
6 Right arrow button and light: moves the cursor to the right or moves the display image to the next screen
NOTE: This button illuminates only when the current screen can use this feature.
7 Cancel button and light: clears settings, cancels the current job or exits the current screen.
NOTE: This button illuminates only when the current screen can use this feature.
8 Back button and light: returns to the previous screen
NOTE: This button illuminates only when the current screen can use this feature.
9 Left arrow button and light: moves the cursor to the left
NOTE: This button illuminates only when the current screen can use this feature.
10 Home button and light: provides access to the Home screen
ENWW Product views 9
